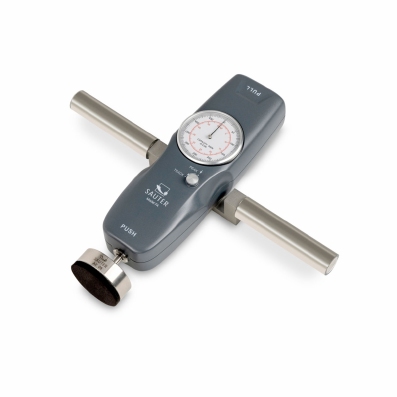

Mechanical tomb stone tester FA-G 500 N, 2.5 N

Free Shipping B,L,F,NL,D

Mechanical tomb stone tester FA-G 500 N, 2.5 N

Mechanical tomb stone tester FA-G 500 N, 2.5 N

Mechanical tomb stone tester FA-G 500 N, 2.5 N

Mechanical tomb stone tester FA-G 500 N, 2.5 N

€ 355.00 € 302.00 *Prices are exclusive of VAT

Manufacturer: SAUTER GmbH
Article code: FA 500G

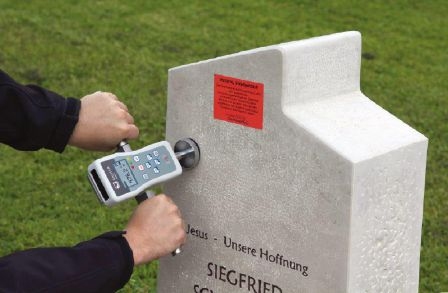

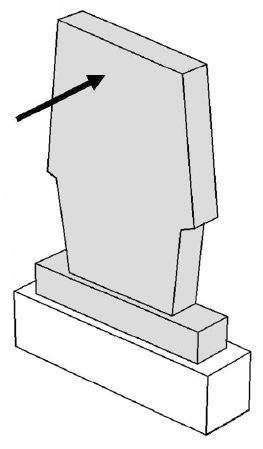

for testing the stability of tombstones in accordance with VSG 4.7
disc plate for pressure tests
stainless steel handle bars with rubber casing for safe handling
no electrical power supply required due to mechanical measuring system
real time or peak hold switch to observe transients or capture peaks by a drag indicator
the force gauge is suitable for measuring push and pull forces

Technical specification

for push and pull forces
measuring range: 0~500 N
readout: 2.5 N
accuracy: 1% of Fmax
overload protection: 1.5 x Fmax
dual scale: shows Newton and kg
rotatable display unit for an easy calibration of the instrument
Peak hold function through drag pointer
can be mounted on all manual test stands
zeroing by a short push of the switch
permissible ambient temperature: 0°~ 40°C
weight: 1,8 g (with carrying case 2.2 kg)
dimensions (WxDxH): 232x280x51 mm (carrying case 315x170x60 mm)
delivered in a hard carrying case
standard attachments: disc plate for pressure tests, stainless steel handle

In stock

ISO certificate

Quantity

Option & accessories

ISO calibration certificate tension ≤ 500 N

ISO calibration certificate tension ≤ 500 N
Factory certificate with traceability

€ 178.00 € 170.00

ISO calibration certificate compression ≤ 500 N

ISO calibration certificate compression ≤ 500 N
Factory certificate with traceability

€ 189.00 € 181.00

ISO calibration certificate tension & compression ≤ 500 N

ISO calibration certificate tension & compression ≤ 500 N
Factory certificate with traceability

€ 335.00 € 320.00

Shoulder strap for FA-G

Shoulder strap for FA-G

€ 9.00 € 6.40
