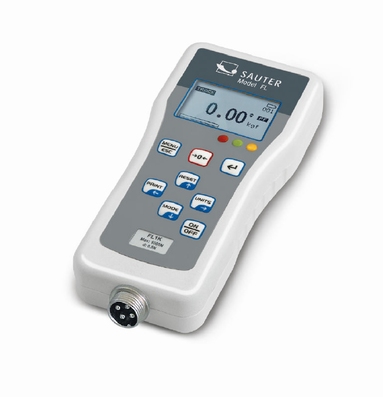

Digital force gauge for external cell FL 20 kN
Digital force gauge for external cell FL 20 kN
Digital force gauge for external cell FL 20 kN
Digital force gauge for external cell FL 20 kN
€ 470.00 332.00 *Prices are exclusive of VAT
Article codeFL TM
  • for push and pull forces

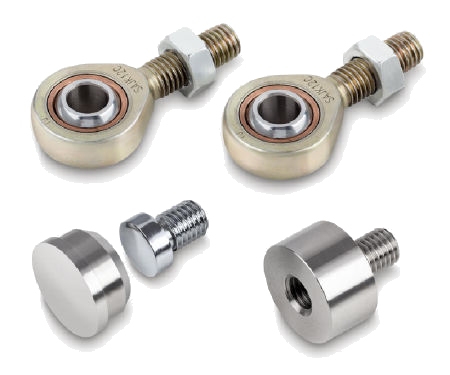

  • for external load cells (external sensor, hitch rings and plates not included in delivery)
  • adjustable nominal loads: 5 N, 10 N, 25 N, 50 N, 100 N, 250 N, 500 N, 1 kN, 2.5 kN, 5 kN, 10 kN, 20 kN, 50 kN
  • accuracy: 0.2 % of Fmax
  • speed of measurement: 1.000 Hz
  • overload protection: 1.2 x Fmax
  • secure operability due to ergonomic design
  • metal housing for durable usage in harsh environmental conditions
  • selectable measuring units: N, lb, kg, oz
  • rotating display with backlight
  • real time or Peak Hold mode to observe transient values or capture peaks
  • capacity display: a bar lights up to show how much of the measuring range is still available
  • function to set limits: programmable high / low setpoints for go/no-go testing. Light and sound signal output ideal mode for efficient and accurate testing of standard parts
  • internal memory up to 999 values

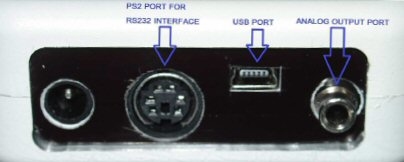

  • continuous analogue output: Linear voltage signal in relation to the load (0~±2 V)
  • digital output: 1xRS232 & 1xUSB (bidirectional)
  • can be mounted on all test stands SAUTER
  • power supply: rechargeable batteries and external power supply 240 Vac (included)
  • permissible ambient temperature: 15°~ 35°C
  • weight: 505 g (with case 1.25 kg)
  • dimensions (WxDxH):  75x30x170 mm (case 270x230x80 mm)

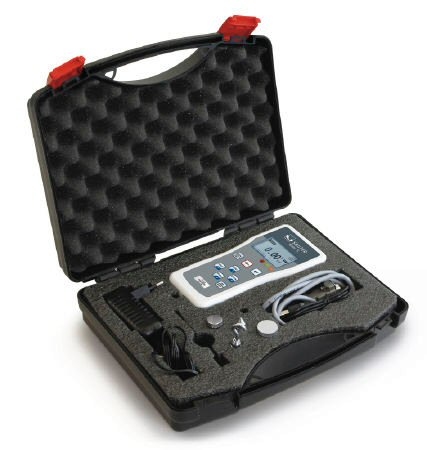

  • supplied in a case with power supply
  • guaranty: 2 years

Click here to download the brochure in pdf for CK/CJ load cells
Click here to download the brochure in pdf for Q1 load cells
Contact us for other types of load cells
In stock
Options & accessories
  • DAkkS calibration certificate in traction and/or compression
  • plug-In for data transfer of measuring data from the measuring instrument and transfer to a PC, e.g. in Microsoft Excel®, AFI-1.0
  • force-time analysis software, speed of data transmission 20 Hz, AFH FAST
  • force / stroke analysis software with graphical recording of the measurement curve, AFH FD
  • USB cable, FL-A01
  • RS-232 adapter cable, FL-A04
  • thermal printer, YKB-01N
  • statistics thermal printer, YKS-01
  • label printer, YKE-01
  • load cells
  • miscellaneous fixing devices for tensile, compression, flexion...test
