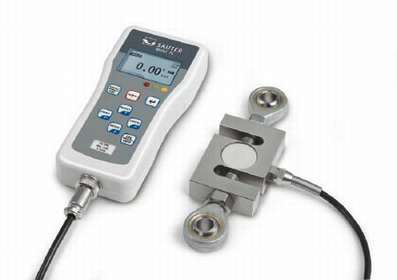

Digital force gauge with external cell FL 5 kN, 1 N

Free Shipping B,L,F,NL,D

Digital force gauge with external cell FL 5 kN, 1 N
Digital force gauge with external cell FL 5 kN, 1 N
Digital force gauge with external cell FL 5 kN, 1 N
Digital force gauge with external cell FL 5 kN, 1 N
€ 990.00 700.00 *Prices are exclusive of VAT
Article codeFL 5K
  • for push and pull forces
  • external measuring cell in 'S'
  • measuring range: 0~5 kN
  • readout: 1 N
  • accuracy: 0.2 % of Fmax
  • speed of measurement: 1.000 Hz
  • overload protection: 1.2 x Fmax
  • dimension of the sensor (lxwxd): 76,2x51x19 mm
  • fixation holes of the sensor: 2x M12x1,75
  • length of the cable between sensor and display: 2,5~3 m
  • secure operability due to ergonomic design
  • metal housing for durable usage in harsh environmental conditions
  • selectable measuring units: N, lb, kg, oz
  • rotating display with backlight
  • real time or Peak Hold mode to observe transient values or capture peaks
  • capacity display: a bar lights up to show how much of the measuring range is still available
  • function to set limits: programmable high / low setpoints for go/no-go testing. Light and sound signal output ideal mode for efficient and accurate testing of standard parts
  • internal memory up to 999 values

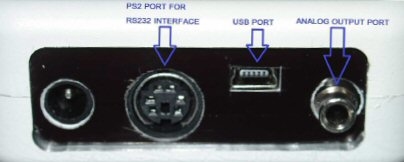

  • continuous analogue output: Linear voltage signal in relation to the load (0~±2 V)
  • digital output: 1xRS232 & 1xUSB (bidirectional)
  • can be mounted on all test stands SAUTER
  • power supply: rechargeable batteries and external power supply 240 Vac (included)
  • permissible ambient temperature: 15°~ 35°C
  • weight: 505 g (with case 1.25 kg)
  • dimensions (WxDxH):  75x30x170 mm (case 270x230x80 mm)

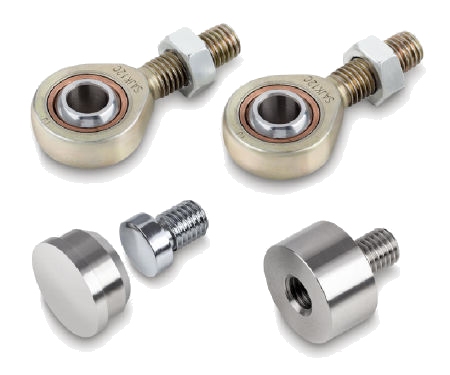

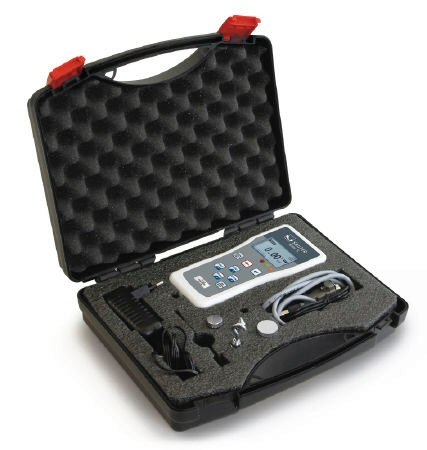

  • supplied in a case with power supply and 2 accessories:
    * 2 eye-attachement for pull-tests, Øint 12 mm, Øext 32 mm, thread length 32 mm, total length 70 mm.
    * 2 pressure plates for push-tests, 1 fixed screw-plate Ø 31 mm and 1 screw-body with moveable plate (can twist) Ø 31 mm.
  • guaranty: 2 years

Click here to download the brochure in Pdf format
Options & accessories
  • DAkkS calibration certificate in traction, compression, traction & compression
  • plug-In for data transfer of measuring data from the measuring instrument and transfer to a PC, e.g. in Microsoft Excel®, AFI-1.0
  • force-time analysis software, speed of data transmission 20 Hz, AFH FAST
  • force / stroke analysis software with graphical recording of the measurement curve, AFH FD
  • USB cable, FL-A01
  • RS-232 adapter cable, FL-A04
  • thermal printer, YKB-01N
  • statistics thermal printer, YKS-01
  • label printer, YKE-01
  • miscellaneous fixing devices for tensile, compression, flexion...test
