Digital force gauge with external cell FH 20 kN, 10 N

Free Shipping B,L,F,NL,D

Digital force gauge with external cell FH 20 kN, 10 N
Digital force gauge with external cell FH 20 kN, 10 N
Digital force gauge with external cell FH 20 kN, 10 N
Digital force gauge with external cell FH 20 kN, 10 N
€ 1,500.00 1,273.00 *Prices are exclusive of VAT
Manufacturer SAUTER GmbH
Article codeFH 20k
  • for push and pull forces
  • remote sensor in 'S'
  • measuring range: 0~20 kN
  • readout: 10 N
  • accuracy: 0.5 % of Fmax
  • speed of measurement: 2.000 Hz
  • overload protection: 1.5 x Fmax

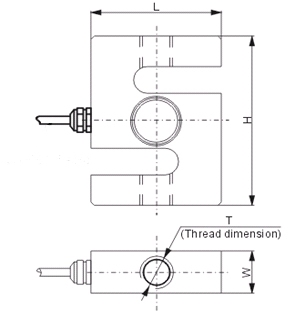

  • dimension of the sensor (wxLxH): 51x76,2x28,2 mm
  • fixation holes of the sensor: 2x M12x1,75
  • length of the cable between sensor and display: 2,5~3 m
  • selectable measuring units: N, lb, kg
  • rotating display with backlight
  • real time or Peak Hold & Auto Peak Hold mode to observe transient values or capture peaks
  • function to set limits: programmable high / low set points for go/no-go testing. Light and sound signal output:
    * ideal mode for efficient and accurate testing of standard parts
    * can stop a motorized displacement of a traction bench (with accessory AFH-02)
  • internal memory up to 10 values
  • mini statistics: calculates the average result from up to ten stored single results, min., max., n
  • digital output: RS232
  • power supply: rechargeable batteries and external power supply 240 Vac (included)
  • permissible ambient temperature: 10°~ 30°C
  • weight: 640 g
  • dimensions of the display (WxDxH):  66x35x230 mm
  • guaranty: 2 years

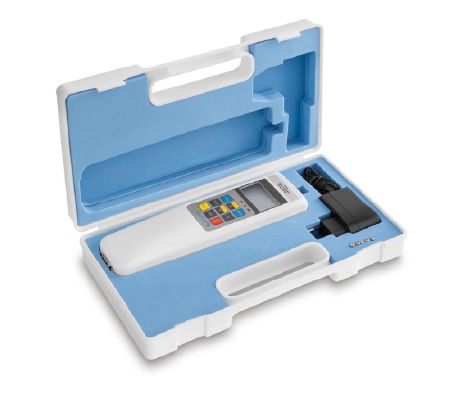

  • supplied in a case with power supply and 2 accessories:

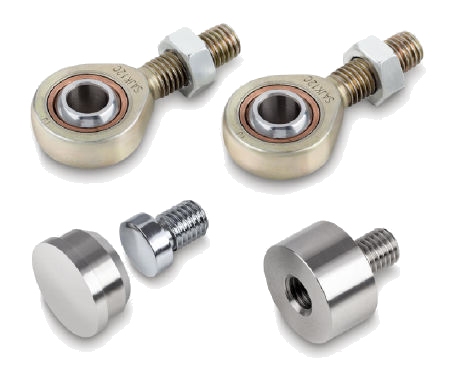

    * 2 eye-attachement for pull-tests, Øint 12 mm, Øext 32 mm, thread length 32 mm, total length 70 mm.
    * 2 pressure plates for push-tests, 1 fixed screw-plate Ø 31 mm and 1 screw-body with moveable plate (can twist) Ø 31 mm

Click here to download the brochure in Pdf format
In stock
Options & accessories
  • ISO factory calibration certificate in traction
  • control module with integrated relay. For example for machine control (I / O), AFH-02
  • force-time analysis software, speed of data transmission 20 Hz, AFH FAST
  • force / stroke analysis software with graphical recording of the measurement curve, AFH FD
  • stainless steel handle with rubber sheath, AFH 04
  • RS-232 / USB adapter for connecting dynamometric measuring instruments with USB connection, AFH12
  • miscellaneous fixing devices for tensile, compression, flexion...test
