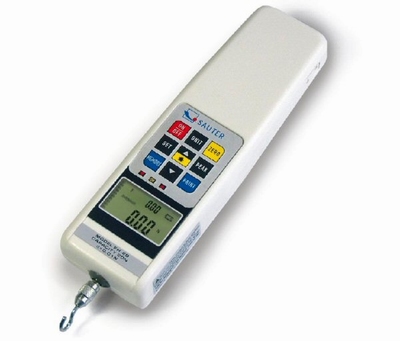

Digital force gauge FH 2 N, 0.001 N

Free Shipping B,L,F,NL,D

Digital force gauge FH 2 N, 0.001 N
Digital force gauge FH 2 N, 0.001 N
Digital force gauge FH 2 N, 0.001 N
Digital force gauge FH 2 N, 0.001 N
€ 590.00 € 501.00 *Prices are exclusive of VAT
Manufacturer:  SAUTER GmbH
Article code:  FH 2
  • for push and pull forces
  • measuring range: 0~2 N
  • readout: 0.001 N
  • accuracy: 0.5 % of Fmax
  • speed of measurement: 2.000 Hz
  • overload protection: 1.5 x Fmax
  • secure operability due to ergonomic design
  • selectable measuring units: N, lb, kg
  • rotating display with backlight
  • real time or Peak Hold & Auto Peak Hold mode to observe transient values or capture peaks
  • function to set limits: programmable high / low setpoints for go/no-go testing. Light and sound signal output:
    * ideal mode for efficient and accurate testing of standard parts
    * can stop a motorized displacement of a traction bench (with accessory AFH-02)
  • internal memory up to 10 values
  • mini statistics: calculates the average result from up to ten stored single results, min., max., n
  • digital output: RS232
  • can be mounted on all test stands SAUTER (4 x M3)
  • power supply: rechargeable batteries and external power supply 240 Vac (included)
  • permissible ambient temperature: 10°~ 30°C
  • weight: 640 g (with case 1.9 kg)
  • dimensions (WxDxH):  66x35x230 mm (case 315x170x60 mm)

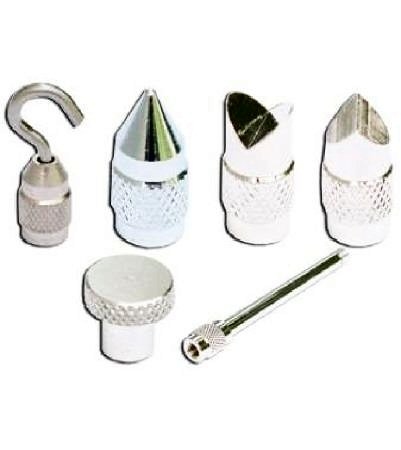

  • standard attachments: as shown below, extension rod: 90 mm

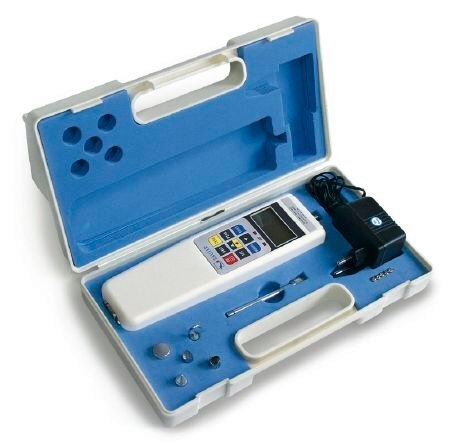

  • delivered in a hard carrying case
  • warranty: 2 years

Click here to download the brochure in Pdf format
In stock
Accessories
  • calibration certificate ISO or DAkkS for trac
  • force-time analysis software, speed of data transmission 20 Hz, AFH FAST
  • force / stroke analysis software with graphical recording of the measurement curve, AFH FD
  • stainless steel handle with rubber sheath, AFH 04
  • RS-232 / USB adapter for connecting dynamometric measuring instruments with USB connection, AFH12
  • miscellaneous fixing devices for tensile, compression, flexion...test

Accessories

Stainless steel handle with rubber grip for FA, FH of FL

Stainless steel handle with rubber grip for FA, FH of FL

€ 105.00 € 90.00
Details
High speed data transfer software for force-time-measurement

High speed data transfer software for force-time-measurement

€ 115.00 € 98.00
Details
Force-displacement analysis software for testing materials

Force-displacement analysis software for testing materials

€ 710.00 € 603.00
Details
Software for repeat tests for testing machine TVS

Software for repeat tests for testing machine TVS

€ 0.00
Details
Converter cable RS-232 to USB

Converter cable RS-232 to USB

€ 95.00 € 81.00
ISO calibration certificate tension ≤ 500 N

ISO calibration certificate tension ≤ 500 N
Factory certificate with traceability

€ 178.00 € 170.00
ISO calibration certificate compression ≤ 500 N

ISO calibration certificate compression ≤ 500 N
Factory certificate with traceability

€ 178.00 € 170.00
ISO calibration certificate tension & compression ≤ 500 N

ISO calibration certificate tension & compression ≤ 500 N
Factory certificate with traceability

€ 325.00 € 311.00
DAkkS calibration certificate tension ≤ 500 N

DAkkS calibration certificate tension ≤ 500 N
DKD-R 3-3 (5 levels, sequence A)

€ 178.00 € 170.00
DAkkS calibration certificate compression ≤ 500 N

DAkkS calibration certificate compression ≤ 500 N
DKD-R 3-3 (5 levels, sequence A)

€ 178.00 € 170.00
DAkkS calibration certificate compression ≤ 5 kN

DAkkS calibration certificate compression ≤ 5 kN
DKD-R 3-3 (5 levels, sequence A)

€ 300.00 € 287.00
Adapter external thread M10, internal thread M6

Adapter external thread M10, internal thread M6

€ 18.00 € 16.00
Adapter external thread M10, internal thread M6

Adapter external thread M10, internal thread M6

€ 18.00 € 16.00
Adapter internal threadl thread M12, internal thread M6

Adapter internal threadl thread M12, internal thread M6

€ 0.00
Adapter external thread M5, internal thread M6

Adapter external thread M5, internal thread M6

€ 18.00 € 16.00
