Wireless inspection and cleaning camera, Ø18 mm, L=7 m

Wireless inspection and cleaning camera, Ø18 mm, L=7 m
Wireless inspection and cleaning camera, Ø18 mm, L=7 m
Wireless inspection and cleaning camera, Ø18 mm, L=7 m
Wireless inspection and cleaning camera, Ø18 mm, L=7 m
Wireless inspection and cleaning camera, Ø18 mm, L=7 m
910.00 *Prices are exclusive of VAT
Article code3622F
0 star(s) in 0 review(s) Write a review

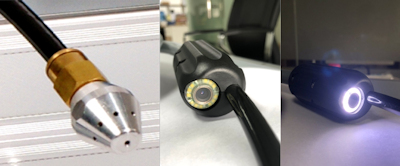

  • This is an innovative air duct blowing equipment with a camera located just behind the front tip to allow visualization of the cleaning process. It is designed to blow damper debris into the main duct.
  • It is a complete system with a 7m air supply line and a monitor with 7 "wireless communication.
  • Uses a standard forward blast tip which can be removed and other tips can be used.
  • A color camera with 12 white LEDs sits just behind the tip to allow visualization of the cleaning process. The video signal is transmitted wirelessly to the 7 "monitor

Technical specification
  • camera: 1/4 '' color CMOS 648x488 pixels
  • Camera Ø: 18 mm
  • Ø of the camera housing: 38 mm
  • viewing angle: 120 °
  • focal length: 20cm
  • camera housing: stainless steel, protection level IP67
  • waterproofing: max 10 m under water
  • types of lighting: 12 very bright white LEDs
  • probe length: 7 m
  • compressed air duct diameter: 16 mm
  • head diameter: 25 mm
  • TFT display: 7 "16: 9 color active matrix LCD with 13-key keypad
  • resolution: 800 * 480 pixels
  • video recording: 720 * 576 pixels, 25 fps max, H.264
  • recording image: 720 * 480 pixels
  • sound recording: by microphone
  • display on the screen / image: time, date, distance counter in m / feet
  • possibility of image rotation on screen 0/180 °
  • memory: 8GB high speed SD card (max 32G)
  • video output for connection to a TV
  • USB 2.0 output to PC
  • 12-key remote control: menu, video recording, photos
  • LED light intensity adjustment
  • video image rotation
  • language support: 11 languages
  • food:
  • * Rechargeable 7.4V lithium battery (6600mA) for 8 hours of continuous work
  • * 6 ~ 12 Vdc mains charger (USB 5V), charging time 8 hours
  • operating temperature: -10 ~ + 50 ° C
  • storage temperature: -20 ~ + 60 ° C
  • weight: 7 kg
  • dimensions: 550x230x450 mm
On order, delivery 3~4 weeks
Standard delivery
  • 1 x 7 m air tube with camera, forward tip, and handle attached to it
  • 1 x 7'' 5.8GHz wireless monitor
  • 1 x USB cable( to charge camera handle by using 5V charger)
  • 1 x DC adapter( connect between monitor;s charger and camera handle, to charge camera handle)
  • 1 x screw driver
  • 1 x charger for 7'' monitor
  • 1 x car charger
