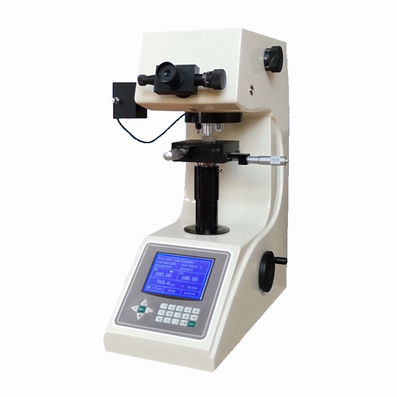

Digital hardnesstester Micro Vickers HV-1000, 10 gf~1 kgf

€ 4,200.00 *Prices are exclusive of VAT

Article code: HV-1000

0 star(s) in 0 review(s) Write a review

It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

Feature & Use

manual turret shifting between indenter and objective lens.

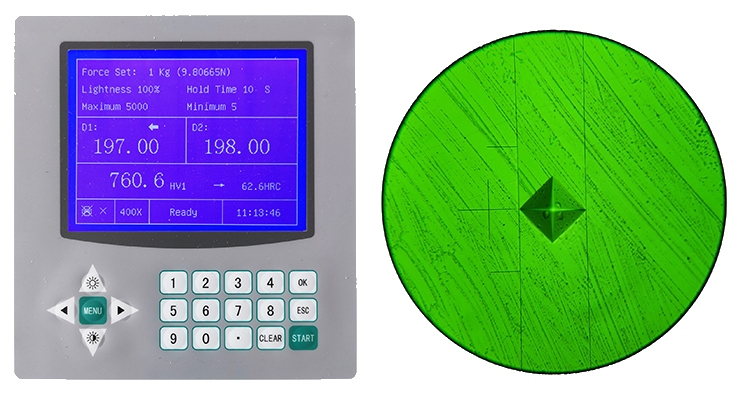

large LCD screen display, easy and convenient operation.
input D1 & D2 value from front panel and hardness value will be displayed on LCD directly.
high quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.
the hardness scale, test force, indenter type, holding time and the conversion unit can be displayed on screen and set.
the turbo-worm elevating system can greatly improve the testing stability and accuracy.
HD measurement and observation - dual objective lens combination, combined with the HD micrometer eyepiece, greatly reduce the manual interference and reading error.
convenient control system can automatically convert the unit of full hardness scales.
the maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.
the hardness value can be corrected within a certain range by standard scale.
with the database function, the testing result can be saved automatically up to 200 data.
CCD image measuring system is optional.
Knoop indenter can be selected to measure the Knoop hardness.
equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.

Technical Specifications

testing force:
* gf: 10, 25, 50, 100, 200, 300, 500, 1000
* N: 0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80
test mode: Vickers
manual turret 3-position : 2 objectives, 1 Vickers indenter
according to standard: GB/T4340.2, EN-ISO6507, ASTME10-18, ASTME-384
indentation measurement: analog measurement micrometer
output data: Rs232/USB, wireless bluetooth printer
loading control: automatic (loading, dwell, unloading)
obective magnification: observation:10x; measurement:40x
magnification on of eyepiece: 10x eyepiece
total magnification: 100x, 400x
resolution: 0.025 μm
dwell time: adjustable 1~99s
testing range: 1~2900 HV
auto hardness conversion: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
X-Y anvil: size: 100x100mm; travel: 25x25mm; resolution: 0.01 mm
illumination: halogen light-source
max. height of specimen: 120 mm
instrument throat: 110 mm
power supply: AC220V/50Hz;110V/60Hz
dimension(LxWxH): 530x290x490 mm
gross/net weight: 45 Kg
