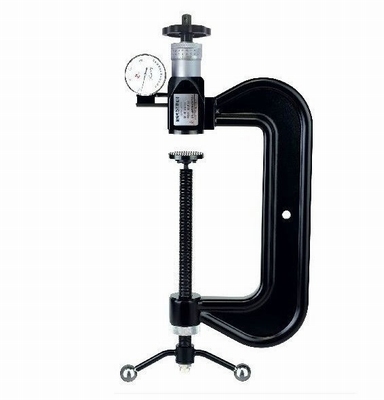

Portable Rockwell Hardness Tester 200x100 mm

Portable Rockwell Hardness Tester 200x100 mm
Portable Rockwell Hardness Tester 200x100 mm
Portable Rockwell Hardness Tester 200x100 mm
1,613.00 *Prices are exclusive of VAT
Article codePHR-8-4
  • portable hardness tester for the measurement of Rockwell hardness according to standards EN ISO 6508 & ASTM E18
  • light, weight only 4.0 kg

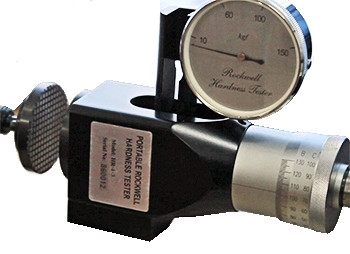

  • as simple to use as a micrometer: the operator applies the preload using the crank, set the scale to zero, increases the load and returns to preload. He can read directly the hardness on the scale
  • precision meets the standards

Technical specifications
  • preload: 10 kg
  • main charges: 60/100/150 kg
  • resolution: 0.5 HR
  • swan neck openingsize (LxD): 200x100 mm
  • weight
    - hardness tester: 4.0 kg
    - complete with carrying case: 10.7 kg
  • dimensions carrying case: 710x470x200 mm
  • accuracy & repeatability: EN ISO 6508 & ASTM E18 standards

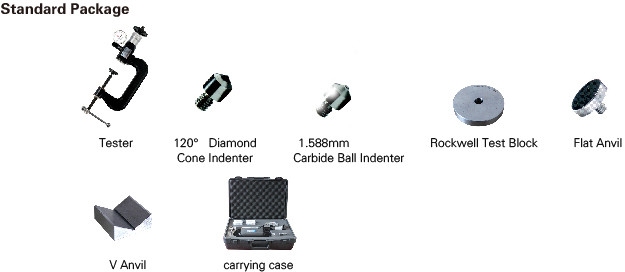

Scope of supply
  • durometer
  • cone 120 ° diamond Indenter
  • penetrator ball 1/16 "
  • 3 blocks to calibration
  • flat anvil
  • V anvil
  • carrying case
  • certificate of calibration to factory with traceability

Accessories
  • penetrator diamond and ball carbide 1/16 ", 1/8" or steel 1/4 '', 1/2 "
  • calibration block
  • various anvils: small surface, convex, concave, for balls...
