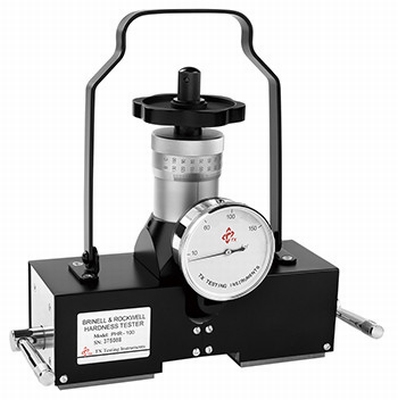

Portable magnetic Rockwell Hardness Tester

€ 2,268.00 *Prices are exclusive of VAT

Article code: PHR-100

0 star(s) in 0 review(s) Write a review

portable hardness tester for the measurement of Rockwell hardness according to standards EN ISO 6508 & ASTM E18

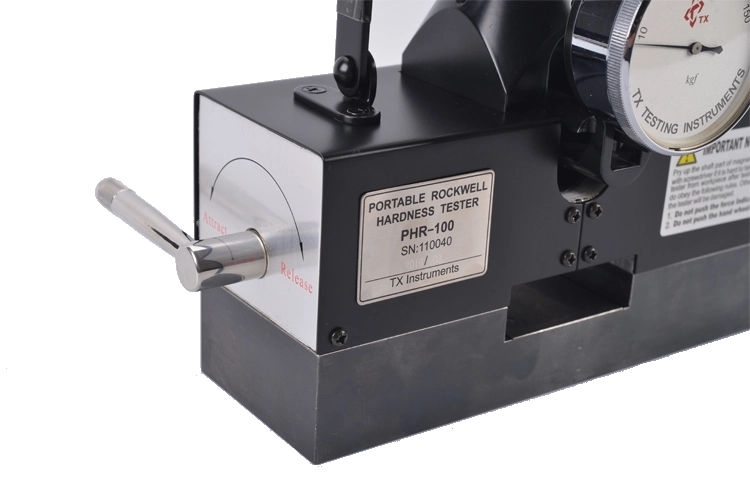

fixation of the test head on the surface of iron and steel parts by applying a magnetic force
test of pieces of big sizes or when the clamping is not possible or too complicate

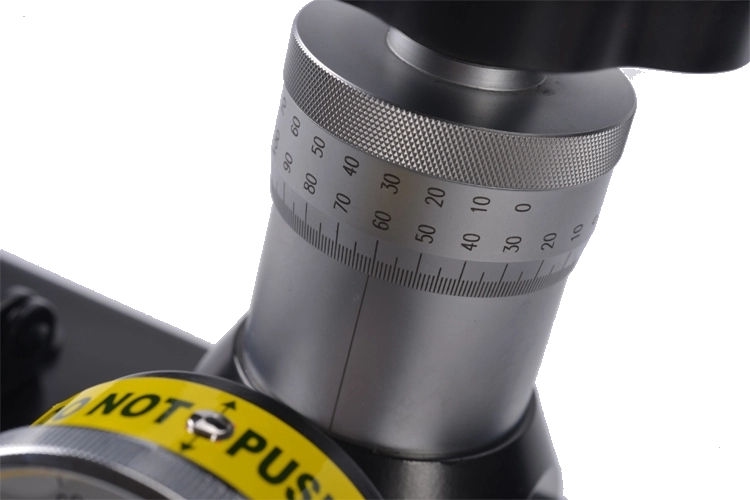

as simple to use as a micrometer: the operator applies the preload using the crank, set the scale to zero, increases the load and returns to preload. He can read directly the hardness on the scale
precision meets the standards

Technical specifications

preload: 10 kg
main charges: 60/100/150 kg
resolution: 0.5 HR
surface of contact:
- flat, min: 60x180 mm, thickness ≥ 5 mm
- cylindrical, min. ØxL: 60x200 mm , thickness ≥ 8 mm
weight
- hardness tester: 4.7 kg

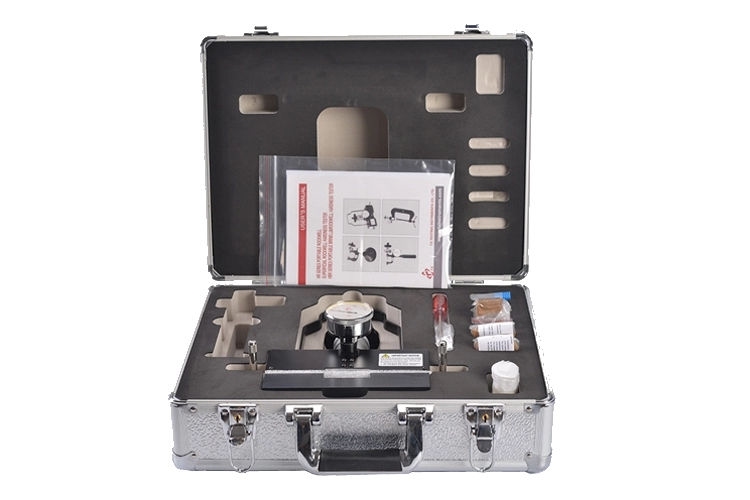

- complete with carrying case: 10.0 kg
dimensions carrying case: 480x390x210 mm
accuracy & repeatability: EN ISO 6508 & ASTM E18 standards

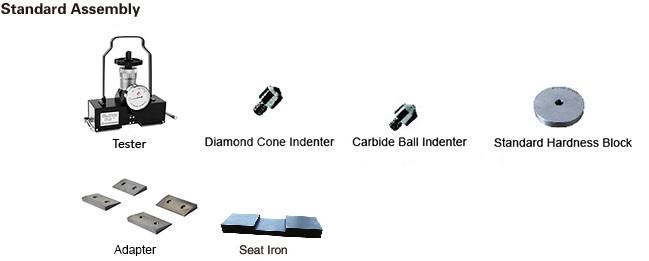

Scope of supply

Accessories

penetrator diamond and ball carbide 1/16 ", 1/8" or steel 1/4 '', 1/2 "
calibration block
customized adapters for cylindrical specimens with smaller diameters Ø 50~100 mm
