Original WEBSTER® model B75

Original WEBSTER® model B75

Original WEBSTER® model B75

Original WEBSTER® model B75

On request

Article code: WB75

0 star(s) in 0 review(s) Write a review

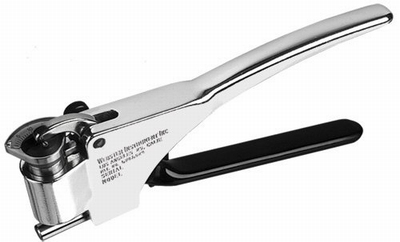

The Model B- 75 Tester was developed to obtain more sensitive response to slight changes in the upper range of hardness covered by the Model B. This sensitivity is particularly useful in testing mild steel and the stronger aluminum alloys. For brass the B-75 covers the range from annealed to full-hard.

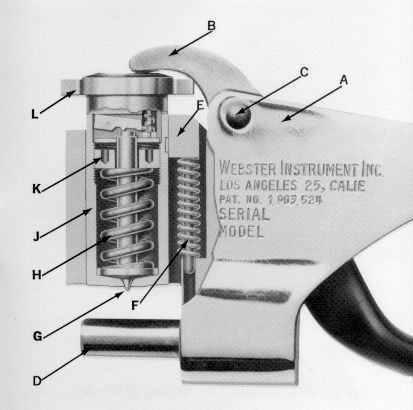

This added sensitivity is accomplished by incorporating a penetrator of slightly different contour and a heavier load spring than used in the Model B.

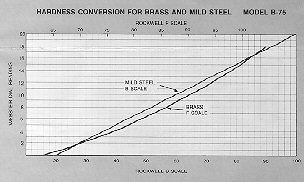

The 20 graduations on the Webster dial indicator covers the range between 20 and 100 on the Rockwell B Scale.

Technical specifications

range: 0-20 HWb-75 (equivalent to 20-110 HRB)
weight: 0.5 kg
maximum specimen thickness: 0~6.35 mm
round anvil Ø 9.5 mm
minimum specimen inner diameter: Ø 10 mm

Scope of delivery

tester
1x standard test strip/block with factory verification certificate
1x spare indenter
1x adjustment wrench
1x screwdriver
1x carrying case
user manual

Accessories

spare indenter
standard test strip/block without or with certificate
spare parts

Quantity

Option & accessories

Reduced anvil, Ø 1/4" (6,35 mm)

Reduced anvil, Ø 1/8" (3,18 mm)

Reduced anvil, Ø 3/16" (4,76 mm)

Standard anvil, Ø 3/8" (9,53 mm)

Extended Anvil Spacer - Ø 1" (25,4 mm)

Extended Anvil Spacer - Ø 1"1/4 (31,75 mm)

Extended Anvil Spacer - Ø 1"3/4 (44,75 mm)

Increase jaw capacity between 1/2"~7/8" + 1" & 1"3/4 spacer

Increase the jaw capacity between 1/4" and 1/2" + 1" spacer

Increase of the jaw capacity of the tester from 1/4" to 3/8"

Increase jaw capacity between 3/8"~3/4" + 1"1/4 spacer

Increase jaw capacity between 5/8"~1" + 1" & 1"3/4 spacer
