Barcol Hardness Tester 934-1

€ 787.00 *Prices are exclusive of VAT

Article code: 934-1

0 star(s) in 0 review(s) Write a review

the Barcol 934-1 durometer is a portable hardness tester. This is the most widely used model, mainly for hardness tests for aluminum and aluminum alloys, as well as for fiberglass reinforced plastic. Barcol hardness tester has the simple operation by just single hand and wide measuring range, no experience to be needed. It can be applied to all the aluminum and aluminum alloy, only need to contact one side to finish the test.
easy to use: one-handed operation. High efficiency, it can make test at any place.
high sensitivity: the Barcol hardness tester has a scale with 100 graduations.Sensitivity is higher than that of Webster hardness testers.
less thickness requirement: it can test on any workpieces with thickness greater than 0,8 mm
wide testing range: it can test from pure aluminum to super hard aluminum alloy.
complies with ASTM B648-00 tets method for indentation hardness of aluminium alloys by means of a Barcol impressor
the Barcol Impressor hardnesstester 934-1 is also used to test fiber reinforced plastics and hard plastics according to ASTM D2583.
indenter: the material hardness of indenter and dimensional tolerance are conform to 2013 verification regulation and enterprise internal standard. Strict quality inspection one by one to make sure the accuracy of Barcol Hardness Tester. Long life and good interconvertibility

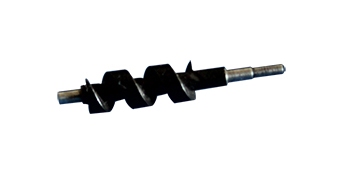

screw rod: metallic with sophisticated screw machinery structure. Ensure the life and reliability of the instruments, is much higher than that of other Barcol hardness testers made of plastic gears
hardness blocks: every piece of Barcol hardness block is directly imported from the United States. It can ensure the veracity, stability, and uniformity of the measurement results.
conversion: through the Barcol hardness conversion table, Barcol hardness value can be conveniently converted to Brinell, Rockwell, Vickers and Webster hardness values.

Technical specifications

test range: 0-100 HBa
effective range: 35-90 HBa (equivalent to 25-150 HBW)
resolution: 0.5 HBa
indication error: 42-48 HBa± 2 HBa, 81-88 HBa± 1 HBa
repeatability error: 42-48 HBa±2.5 HBa, 81-88 HBa± 1.5 HBa
sample thickness requirements: >0.8 mm
weight: 0.5 kg

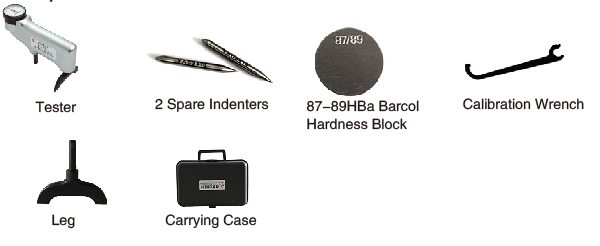

Scope of supply

tester
2x standard test block (1 high, 1 low)
2x spare indenter
1x calibration wrench
1x leg
1x carrying case
user manual

Accessories

spare indenter
standard test block
spare dial glass
flat leg used in testing narrow surface and cylinder parts with width less than 40 mm

On order, delivery 3~4 weeks
