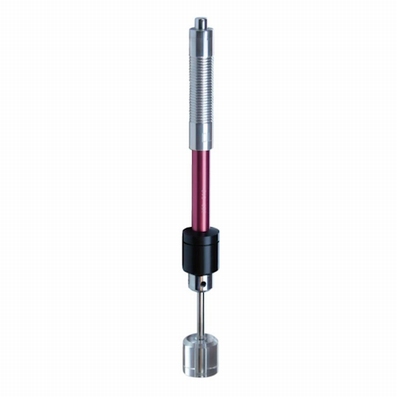

Impact sonde LEEB type DL (HLDL)

Impact sonde LEEB type DL (HLDL)
0.00 *Prices are exclusive of VAT
Manufacturer SAUTER GmbH
Article codeAHMR DL
Needle front section impact device LEEB for HK-D or HMR
- tip Øxl 4.2x50 mm
- for measurements in extremely confined spaces
- impact energy: 11 Nmm
- mass of impact body: 7.3 g
- test tip: Ø 3 mm, carbide, 1600 HV
- body: Øxl 20x75 mm, 50 g
- max. hardness of the test specimen: 940 HV
- surface preparation: Ra max 2 µm
- weight of the piece: 5 kg, 2 kg on a stable support, 0.1 kg with coupling
- min. thickness of sample with coupling paste: 3 mm
- min. layer thickness: 0.8 mm
- precision: ± 12 HLD+15

Measuring range

Materials
HV
HB
HRC
HRB
HSD
Steel
80~950
81~646
20,6~68,2
37,0~99,9
30,6~96,8
Alloy tool steel
-
-
-
-
-
Stainless steel
-
-
-
-
-
Grey cast iron
-
-
-
-
-
Ductile iron
-
-
-
-
-
Cast aluminium
-
-
-
-
-
Brass
-
-
-
-
-
Bronze
-
-
-
-
-
Copper
-
--
-
-
-
