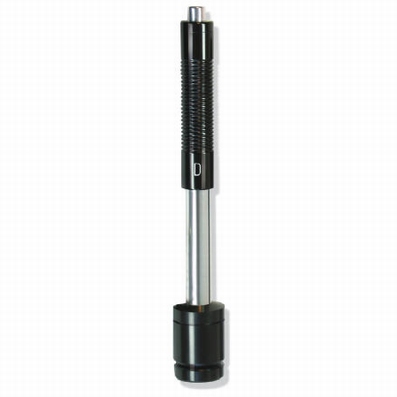

Impact sonde LEEB type D (HLD)

Impact sonde LEEB type D (HLD)
0.00 *Prices are exclusive of VAT
Manufacturer SAUTER GmbH
Article codeAHMR D
Standard impact device LEEB for HK-D or HMR
- measuringrange: 170~960 HLD
- impact energy: 11 Nmm
- mass of impact body: 5.5 g
- test tip: Ø 3 mm, carbide, 1600 HV
- body: Øxl 20 x 147 mm, 75 g
- max. hardness of the test specimen: 940 HV
- surface preparation: Ra max 2 µm
- weight of the piece: 5 kg, 2 kg on a stable support, 0.1 kg with coupling
- min. thickness of sample with coupling paste: 3 mm
- min. layer thickness: 0.8 mm
- precision: ± 6 HLD to 760 HLD

Measuring range

Materials
HV
HB
HRC
HRB
HSD
Steel
81~955
81~654
20~68,4
38,4~99,5
32,5~99,5
Alloy tool steel
80~898
-
20,4~67,1
-
-
Stainless steel
85~802
85~655
19,6~62,4
46,5~101,7
-
Grey cast iron
-
63~336
-
-
-
Ductile iron
-
140~387
-
-
-
Cast aluminium
-
19~164
-
23,8~84,6
-
Brass
-
40~173
-
13,5~95,3
-
Bronze
-
60~290
-
-
-
Copper
-
45~315
-
-
-
