Hardnesstester Brinell HBS-62.5TAE, 1~62.5 kg

Price on request

Article code: HBS-62.5TAE

0 star(s) in 0 review(s) Write a review

Feature

automatic turret shifting between indenter and lens.
electric loading without weights, closed loop control.
automatic process of loading, dwelling and unloading of test force, no human error.

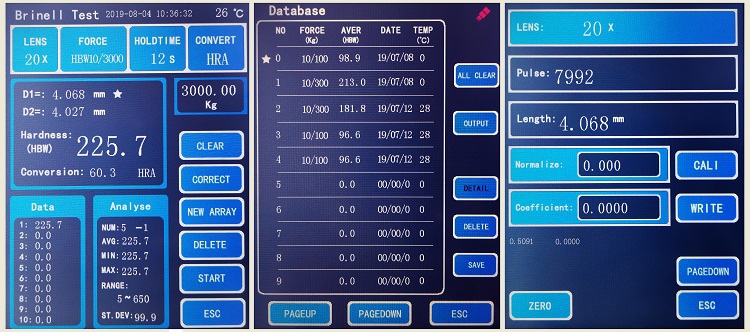

large 8” touch screen, direct visual display and interactive operating interface.
high speed ARM processor, fast operation speed and extensive database storage.
high quality integral casting cast iron machine body with automotive paint treatment process, the appearance is smooth and beautiful.
built-in hardness conversion scales, which can realize full hardness scale conversion.
maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued.
automatic hardness value correction, the hardness value can be directly corrected within a certain range.
database function, the test data can be saved automatically in groups, each group can save 10 data, totally can save more than 2000 data.
hardness value curve display function, intuitively display the changes of hardness value.
equipped with wireless blue-tooth printer, the data can be output through RS232 or USB interface.
CCD image processing system or video measuring apparatus is optional.
precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10.
suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.

Specifications

measuring range: 5-650 HBW
test force: 1, 2.5, 5, 6.25, 10, 15.625, 30, 31.25, 62.5 kgf (9.807, 24.52, 49.03, 61.29, 98.07, 153.2, 294.2, 31.125, 612.9 N)
hardness resolution: 0.1 HBW
eyepiece magnification: 10x
objective lens magnification: 5x, 10x
total magnification: 50x, 100x
max. height of test piece: 200 mm
depth of throat: 130 mm
dwelling time: 1~99 s
power supply: 220 Vac, 50 or 60 Hz
dimensions: 600 x 330 x 700 mm
weight: approx. 75 kg
