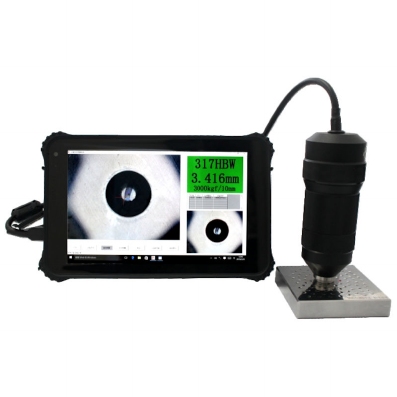

Video measuring system for Brinell indentation MS2a

€ 4,400.00 *Prices are exclusive of VAT

Article code: MS-2a

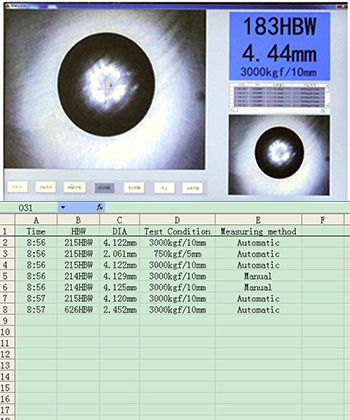

MS-2a Brinell Indentation Measurement System is a Brinell optical scanning system, it is mainly composed of camera and special image processing software. The Brinell hardness indentation image is captured by the camera, the indentation diameter is automatically identified and measured, and the Brinell hardness value is automatically calculated and directly displayed. Instead of using a reading microscope to measure manually, calculate the average diameter and consult a chart to get the hardness value. The image of the MS-2a BrinellI indentation measuring system is brighter and clearer, the measurement is more convenient and quick, and the result is more precise and objective.

Function and Features

advanced image processing technology, can ensure the accurate identification of indentation edges.

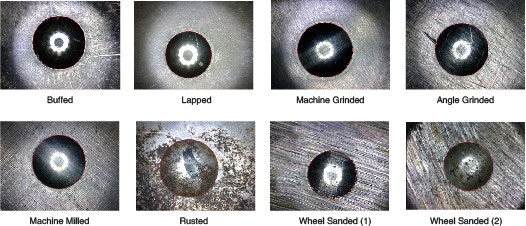

100% automatic indentation recognition capability on rough and rusty surface, no need manual tangent to facilitate measurement.
Smooth shape design brings more comfortable grip.
the newly designed optical system and illuminator ensure that the low-indentation image also has clear edges and ideal contrast.
the cables are stronger, more flexible, more durable and more resistant to interference.
the newly updated software has a measurement resolution of up to 1 µm, which allows the whole system to achieve higher measurement accuracy and repeatability.

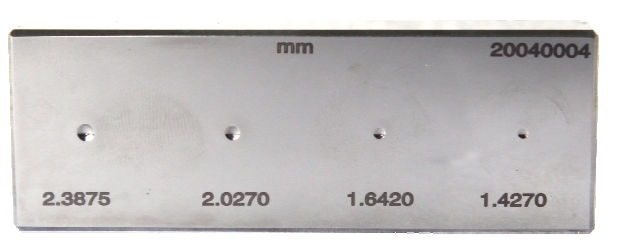

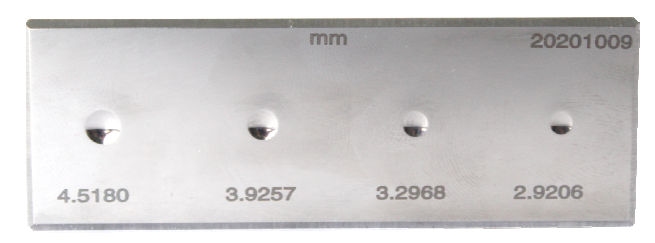

each standard block is supplied with 4 standard indentations of known diameter and size, which can check the indentation measurement deviation at any time.
can be calibrated with a micrometric graticule, indentation measurement results with traceability.

Technical characteristics

ball diameter: 10/5/2.5 mm
measuring range: 16~650 HBW
camera resolution: 1600x1200 pixels
field of view: 8mm x 6mm
measurement resolution: 1 um
diameter measuring range
* 10mm ball: 2.4~6mm
* 5mm ball: 1.2~3mm
* 2.5mm ball: 0.6~1.5mm
diameter measurement accuracy
* 10 mm ball: ± 0.4%
* 5 mm ball: ± 0.8%
* 2.5 mm ball: ± 1.2%
repeatability
* 10 mm ball: ± 0.4%
* 5mm ball: ± 0.6%
* 2.5 mm ball: ± 0.4%
camera net weight: 0.385 kg
computer requirements: operating system: Windows XP/7/8/10
