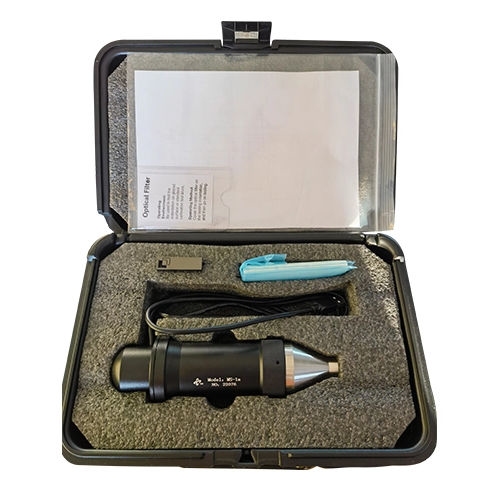

Video measuring system for Brinell indentation 0.6~3 mm

€ 3,317.00 *Prices are exclusive of VAT

Article code: MS-1b

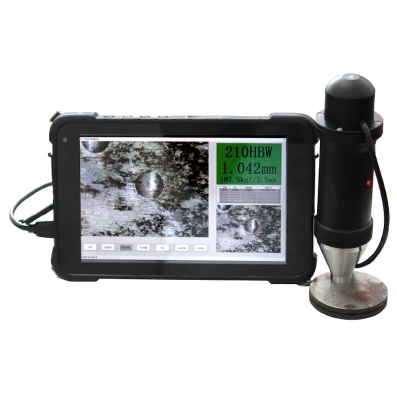

the Brinell indentation measuring system of the MS-1 series is a Brinell optical video measuring system. It has advanced visual technology to shoot the indentation by CCD camera lens, manually or automatically recognize and measure the diameter of the indentation on a laptop computer, and then directly display the Brinell hardness value of the workpiece on the screen. It is typically used on-site together with other Brinell hardness testing equipment. Efficient, simple, objective and reliable measurement process.

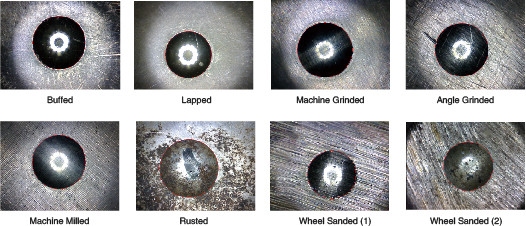

excellent image processing technology, 100% recognition rate for indentations on various surface finishes (see images).

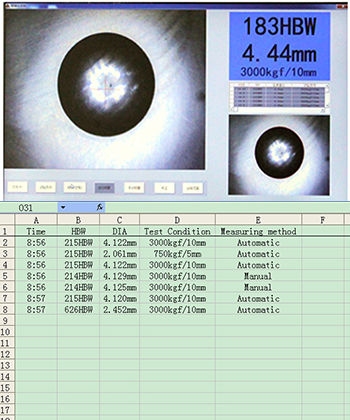

manual and automatic recognition, with rarely used manual mode.
clear and sharp image thanks to a specially designed ring light source and high quality lenses, the contrast is fantastic.
simple and easy to use user interface
automatic data backup, available for review.

Technical characteristics

* processor: > 2 GHz

* internal storage: > 2 GB

* Operating System: Windows XP/7/8/10
