Portable magnetic/hydraulic Brinell hardnesst tester 750 kg

Portable magnetic/hydraulic Brinell hardnesst tester 750 kg
Portable magnetic/hydraulic Brinell hardnesst tester 750 kg
4,316.00 *Prices are exclusive of VAT
Article codePHB-750

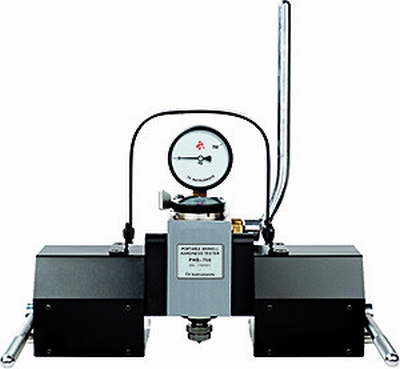

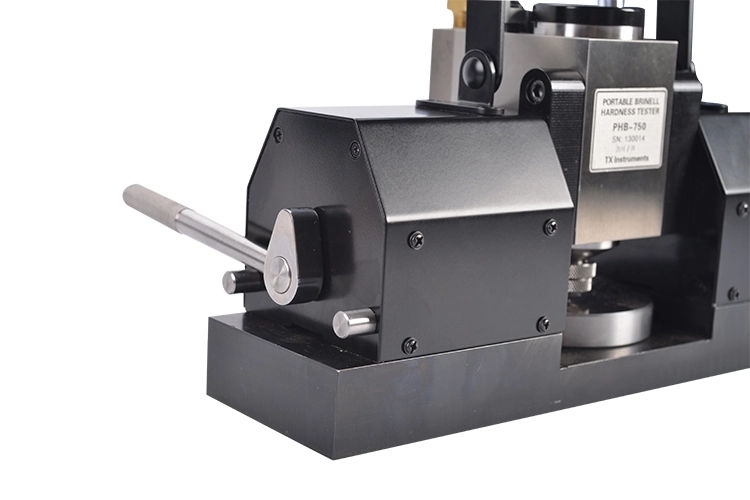

Fix the durometer test head to the iron / steel surface by means of the magnetic attraction force. The central part of this Brinell magnetic type tester is a small hydraulic system. The operator can actuate the hydraulic pump to produce a test force of 750 kg by operating the pressure lever. There is a control valve in the hydraulic system which is used to control the test force. When the test force reaches 750 kg, the control valve opens and closes immediately to maintain the force. In accordance with EN ISO 6506, ASTM E110 and GB / T 4285, maintain the test force for 10 to 15 seconds before unloading and measure the indentation size with the measuring microscope.

Characteristics
  • test possible on a surface accessible on only one side of the room.
  • no need to move the part.
  • great freedom to choose the location of the measuring point
  • test condition: Ø5 mm ball, 750 kg force, results in a larger indentation and better representativeness and easier reading than with a Ø2.5 mm ball.
  • compared with other Brinell hydraulic hardness tester, simpler operation, easier to carry.
  • ability to test construction materials, parts and steel of any shape and size.

Applications
  • for castings, forgings, sheet steel, steel pipe, structural steel and pressure steel, which other testers have not been able to test or difficult to test.
  • for macro-axes, sleepers, huge or super-huge heat treatment parts.
  • for pipes, large equipment and huge steel structural parts already welded or assembled.
  • only for magnetic steel

Technical specifications
  • test force: 750 kg
  • test ball: carbide Ø5 mm
  • test range: 100~650HBW
  • measurement error: conforms to ISO 6506 and ASTM E10 standards.
  • repeatability error: conforms to ISO 6506 and ASTM E10 standards.
  • Test force error: conforms to ISO 6506 and ASTM E10.
  • minimum bearing surface
    * flat = 290mm × 90m
    * cylindrical: diameter = 120mm
  • weight: 15.8 kg

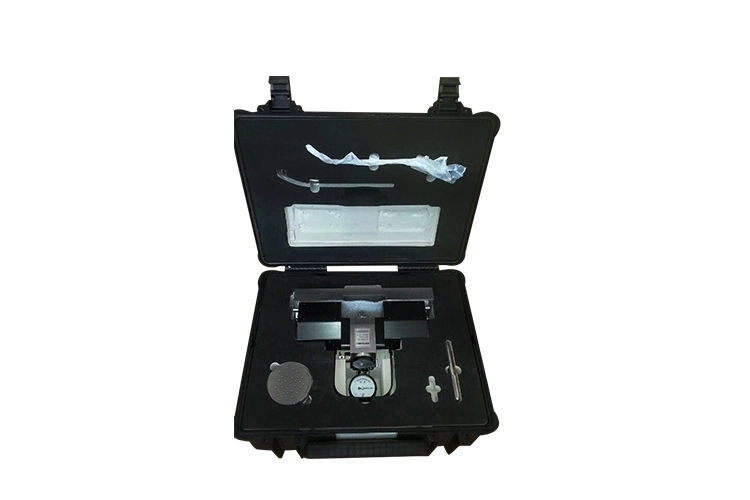

Standard delivery
  • hardnesstester
  • load loading lever
  • Brinell stallion block
  • iron base
  • 20X measuring microscope
  • spare carbide ball Ø5 mm
  • factory certificate
Accessories
  • Brinell hardness test block
  • Ø 5 mm carbide test ball
  • oil & oil sac
  • O ring
  • repair kit
  • video Brinell indentation measurement system
