1,613.00 *Prices are exclusive of VAT
Article codePHB-150

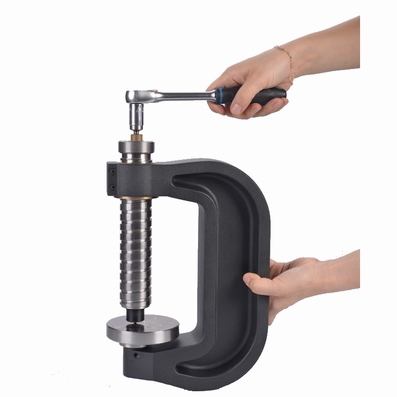

  • the Brinell PHB-150 Pin static hardness tester is designed using the Brinell hardness test method. The test force is controlled by a calibrated shear pin. After reading the diameter of the impression with the reading microscope, the Brinell hardness value can be obtained from the lookup table.
  • this type of Brinell pin hardness tester is particularly suitable for assemblies which are inconvenient to take to the laboratory and which cannot be cut.
  • Brinell PHB-150 Pin static hardness tester can be widely used to test hardness of forgings, castings, steels, non-ferrous metal and its alloys, and to test hardness of annealed, normalized and mechanical parts. soaked.
  • compared with rebound type hardness tester, Pin Brinell portable hardness tester has many advantages such as higher accuracy, less factors affecting accuracy and less requirement on surface roughness. The test result meets the requirements of most designs without conversion and is more widely accepted in international trade.
  • the Brinell hardness test is carried out with a test force of 1580 kg and an indenter diameter of 7.26 mm and is in the ratio F / D2 = 30.

Technical specifications
  • test force 1580 kgf
  • indenter:
    * 7.26mm steel ball indenter, test range 100~350 HBW
    * 4mm carbide ball indenter, test range 350~650 HBW
  • measurement error: ≤ 2~3% conforming to ISO, ASTM
  • repeatability error: ≤ 2~3% conforming to ISO, ASTM
  • opening dimension: 150mm (height) x 100mm (throat depth)
  • net weight: 4.2 kg

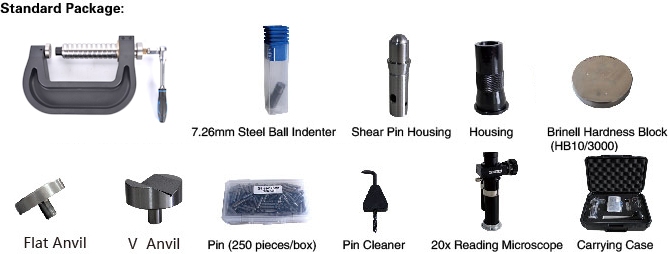

Scope of supply
  • frame with clamping screw
  • crank
  • impact body with pin housing
  • housing
  • steel ball Ø 7.26 mm

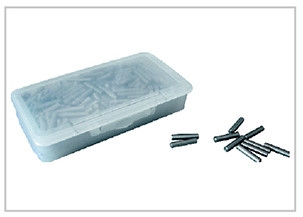

  • box of 250 pins
  • pin ejector / cleaner
  • flat anvil
  • V anvil
  • 20x microscope
  • transport case
Accessories
  • steel indenter Ø 7.26 mm
  • Ø 4 mm carbide indenter
  • box of 250 pins
  • spherical spot anvil for pipes or curved surfaces
  • small flat anvil
  • 20x measuring microscope
  • 40x measuring microscope
  • video fingerprint size measurement system
