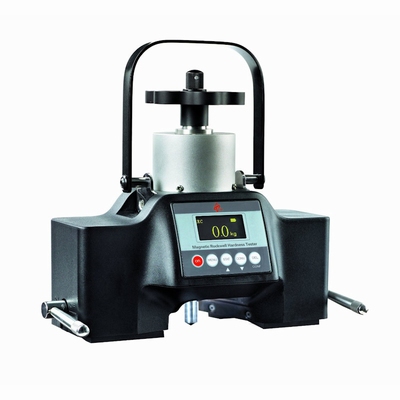

Portable digital magnetic Brinell hardnesst tester 187,5 kg

€ 3,993.00 *Prices are exclusive of VAT

Article code: PHB-200

with the magnetic chucks, fix the PHB-200 Digital Brinell Hardness Tester on the specimen surface and finish testing. It is completely based on the Brinell test principle, and the test method complies with GB/T231.2, ASTM E10, ISO6506.

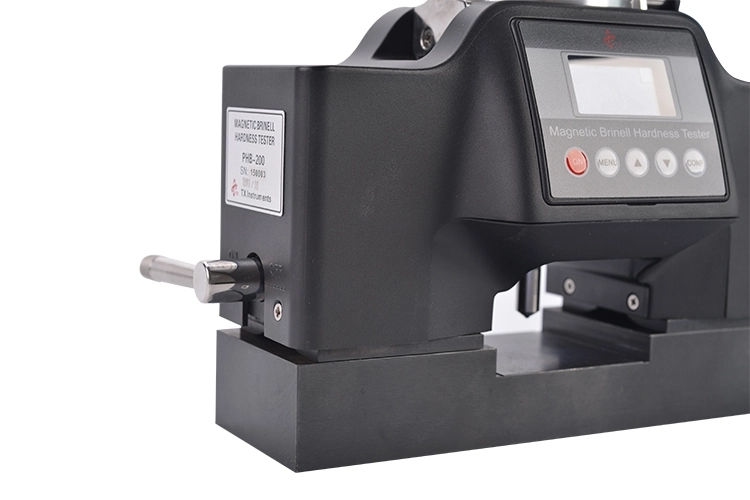

fixation of the test head on the surface of iron and steel parts by applying a magnetic force
being used together with the Brinell indentation measurement system, it can be applied to quick and precise test of specimen’s Brinell hardness on site.
applied to steel parts that too large or too heavy for table tester to test.
applied to testing heat treatment parts such as steel plate, pipe, mould with available testing surface.
applied to testing the hardness of weld joint on boilers, pressure vessels and pressure pipes.

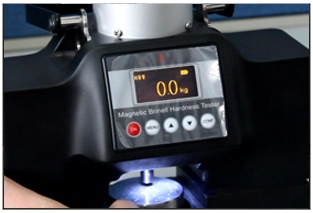

as simple to use as a micrometer: the operator applies the preload using the crank with help of the LCD display indicating the true load, increases the load and returns to preload. He can then measure the indentation with a measuring microscope.
the PHB-200 tester could replace the Leeb hardness tester which is in low accuracy and reliability.

Technical specifications

test force: 187,5 kg
indenter: Ø 2.5 mm carbide ball
digital measurement of the force with a high precision / stability load cell, test force error: ≤ ±1%
complies with GB/T231.2,ASTM E10, ISO6506
surface of contact:
* flat, min: 60x195 mm, thickness ≥ 5 mm
* cylindrical, min. ØxL: 60x200 mm , thickness ≥ 8 mm
lighting of the test area
operating temperature: 5~45°C
weight
* hardness tester: 5.1 kg

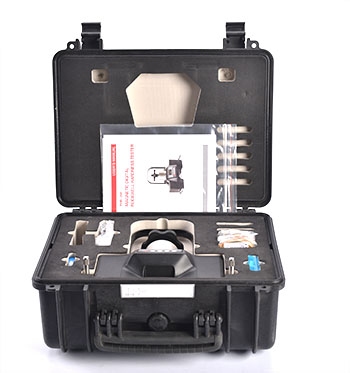

* complete with carrying case: 10.0 kg
nominal dimension (LxDxH): 245×105×138mm
dimensions carrying case: 480x390x210 mm
accuracy & repeatability: EN ISO 6506 & ASTM E10 standards

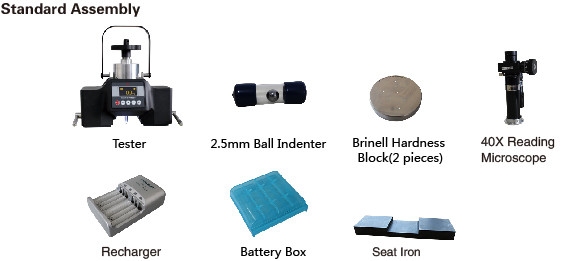

Standard delivery
