Video measuring system for Brinell indentation 2.4~6 mm

Video measuring system for Brinell indentation 2.4~6 mm
Video measuring system for Brinell indentation 2.4~6 mm
Video measuring system for Brinell indentation 2.4~6 mm
Video measuring system for Brinell indentation 2.4~6 mm
Video measuring system for Brinell indentation 2.4~6 mm
Video measuring system for Brinell indentation 2.4~6 mm
3,317.00 *Prices are exclusive of VAT
Article codeMS-1a
  • the Brinell indentation measuring system of the MS-1 series is a Brinell optical video measuring system. It has advanced visual technology to shoot the indentation by CCD camera lens, manually or automatically recognize and measure the diameter of the indentation on a laptop computer, and then directly display the Brinell hardness value of the workpiece on the screen. It is typically used on-site together with other Brinell hardness testing equipment. Efficient, simple, objective and reliable measurement process.

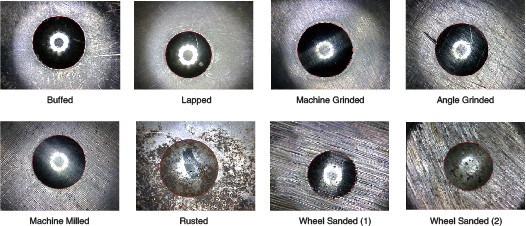

  • excellent image processing technology, 100% recognition rate for indentations on various surface finishes (see images).
  • manual and automatic recognition, with rarely used manual mode.
  • clear and sharp image thanks to a specially designed ring light source and high quality lenses, the contrast is fantastic.
  • simple and easy to use user interface

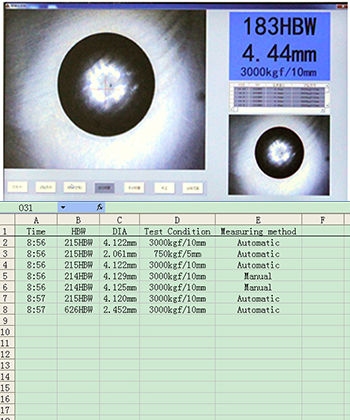

  • automatic data backup, available for review.

Technical characteristics
  • for test loads 3000/1000/500 kg (1580 mm)
  • ball diameter 10 mm (7.26 mm)
  • measuring range 2.4~6 mm / 8~650 HBW
  • camera resolution: 1600x1200 pixels
  • field of view: 8.96mm x 6.72mm
  • measurement resolution: 11 um
  • computer requirements:
    * processor: > 2 GHz
    * internal storage: > 2 GB
    * Operating System: Windows XP/7/8/10
Standard delivery
  • camera with software dongle inside and cable

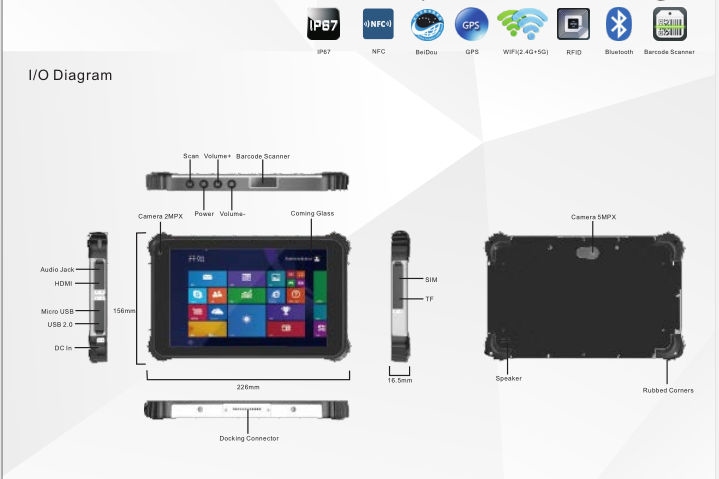

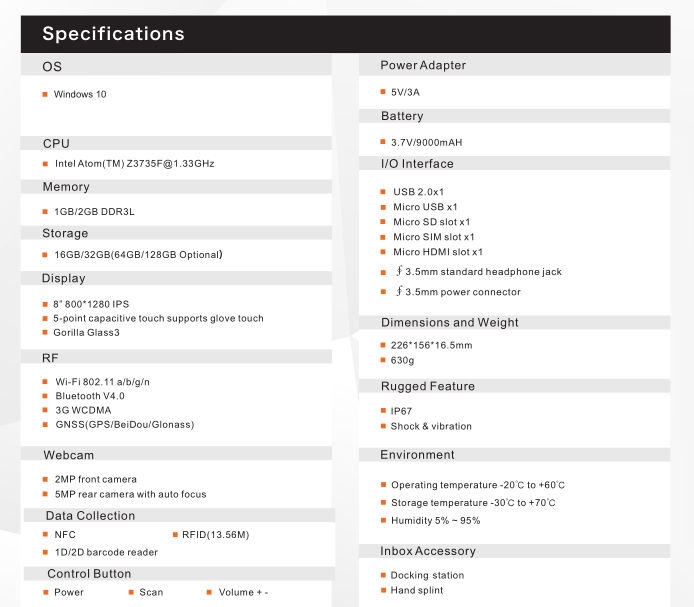

  • tablet

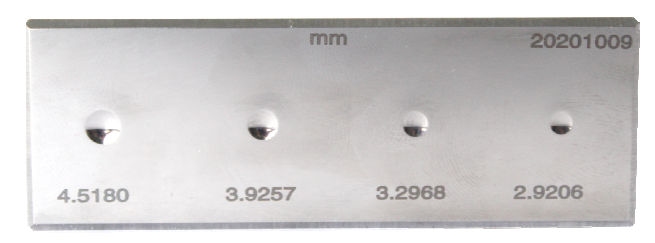

  • 1 calibration block 10 mm ball indentation

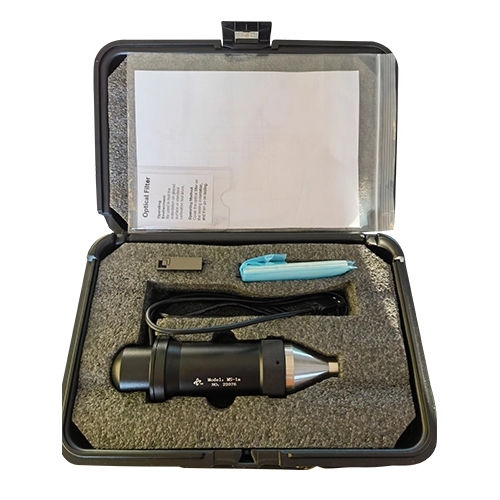

  • carrying case
  • manual
