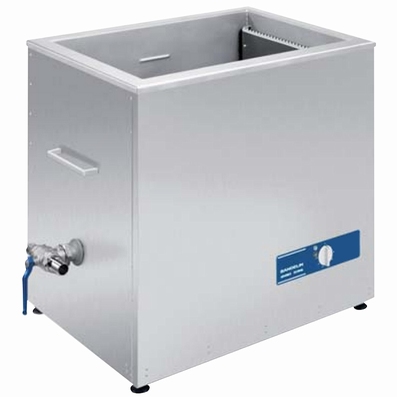

Rinsing tank with heating RM 110 H

Rinsing tank with heating RM 110 H
Price on request
Manufacturer:  BANDELIN
Article code:  RM 110 H
Dimensions
  • inside: 600×450×450 mm (l x w x h)
  • outside: 780×550×800 mm (l x w x h)
  • filling level mark from the tank bottom: 305 mm
  • upper edge overflow gutter from the tank bottom: 405 mm
  • capacity: 135 l
  • operating volume up to filling level mark: 110 l
  • filling volume to overflow gutter: 125  l

Facilities
  • material: tank, stainless steel AISI 316, 2 mm, welded - housing stainless steel AISI 304
  • protection: IP32
  • outlet / inlet: 3-way ball valve G 1 incl. hose and hose sockets, on the left side, brass, galvanically coated
  • overflow, tightly welded with closing cap G 1, on the right side of the tank
  • overflow gutter on the right side of the tank
  • heating: integrated, adjustable 30~80°C, 800 W

Technical specifications
  • electrical connection: 400 V 3N~ (± 10 %), 50/60 Hz
  • power consumption: 10.5 A
  • cable: 3 m
  • packing: 1100×750×1100 mm (L × B × H).
  • net weight: 60 kg

Data sheet

Accessories

Insert basket with handles, stainless steel, MK 110

Insert basket with handles, stainless steel, MK 110
for RM 110

€ 822.00
Insert basket with handles, stainless steel, MK 110 B

Insert basket with handles, stainless steel, MK 110 B
for RM 110

€ 847.00
Insert basket with handles, stainless steel, MK 110 BS

Insert basket with handles, stainless steel, MK 110 BS
for RM 110

€ 1,017.00
Insert basket with handles, stainless steel, MK 110 S

Insert basket with handles, stainless steel, MK 110 S
for RM 110

€ 993.00
Lid, stainless steel MD 110

Lid, stainless steel MD 110
for RM 110

€ 404.00
Oscillating basket support MB 110

Oscillating basket support MB 110
for RM 110 /U/H/UH

Price on request
Filtration unit FA 110 & connection kit

Filtration unit FA 110 & connection kit
for RM 110

Oil separator OX 110 & connection kit

Oil separator OX 110 & connection kit
for RM 110

Dryer TO 110

Dryer TO 110
for RM 110

Price on request
