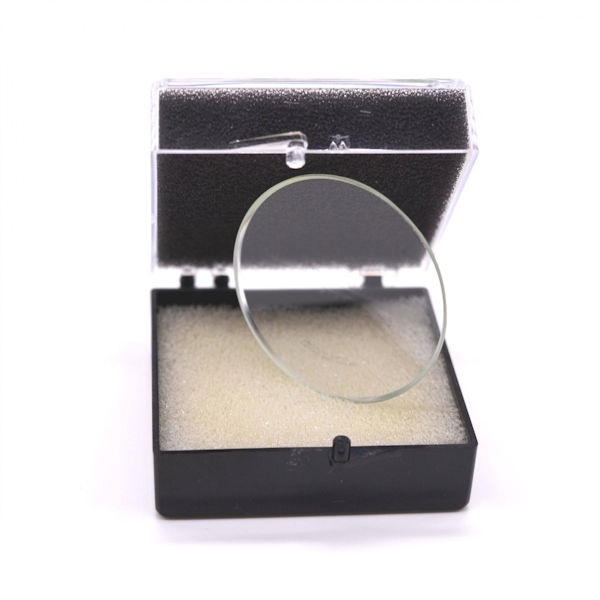

Reticule Ø35mm for magnifier, horizontal scale 12-0-12/0.1mm

available in black, white or red with option UKAS certificate

Reticule Ø35mm for magnifier, horizontal scale 12-0-12/0.1mm
Reticule Ø35mm for magnifier, horizontal scale 12-0-12/0.1mm
Reticule Ø35mm for magnifier, horizontal scale 12-0-12/0.1mm
Price on requet
Article code:  M6T10x
  • replacement scales for measuring loupes 1983, 2028, 2004, KIMAG-10, Mag6

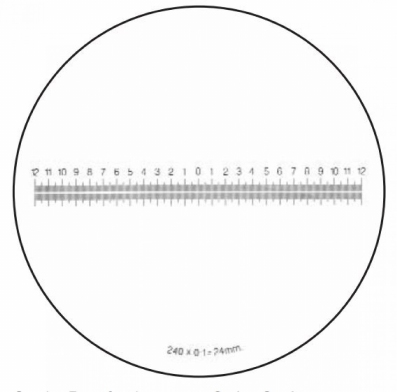

  • 24 mm horizontal scale subdivided into 240 divisions of 0.1 mm (100µm) with centre zero
  • Ø 35 mm
  • glass type: green float / B270
  • thickness: 1.5mm
  • standard reticles are on glass discs with black metalised opaque lines best suited for light backgrounds.
  • for dark backgrounds red or white line reticles are also available
  • UKAS certificate in option
