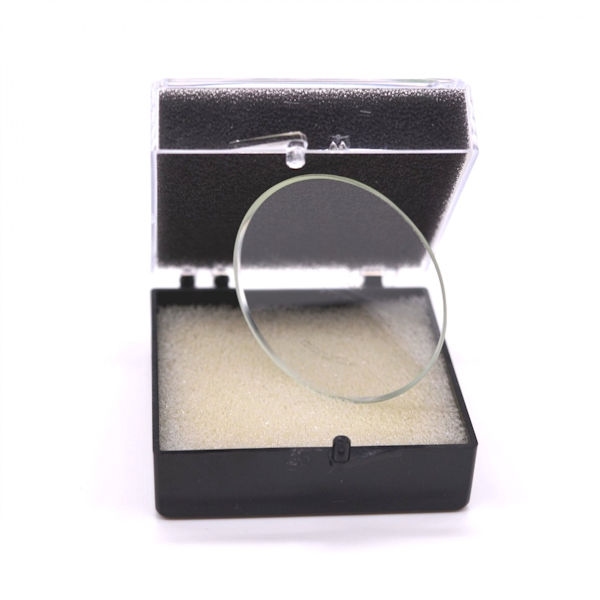

Reticule Ø 35 mm for magnifier, multipurpose

available in black, white or red with option UKAS certificate

Reticule Ø 35 mm for magnifier, multipurpose
Reticule Ø 35 mm for magnifier, multipurpose
Reticule Ø 35 mm for magnifier, multipurpose
Price on requet
Article code:  M6T40x
  • replacement scales for measuring loupes 1983, 2028, 2004, KIMAG-10, Mag6

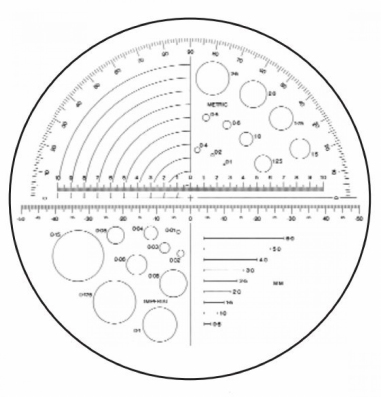

  • multipurpose reticle
    * centre zero scales 20 mm/0.1 mm
    *  centre zero scales 1.0''/0.01''
    * half protractor
    * concentric circles r 1~10mm
    * circles Ø0.01~2.5mm
    * circlesØ0.01'~0.15''
    * lines 0.5~6 mm.
  • Ø 35 mm
  • glass type: green float / B270
  • thickness: 1.5mm
  • standard reticles are on glass discs with black metalised opaque lines best suited for light backgrounds.
  • for dark backgrounds red or white line reticles are also available
  • UKAS certificate in option
