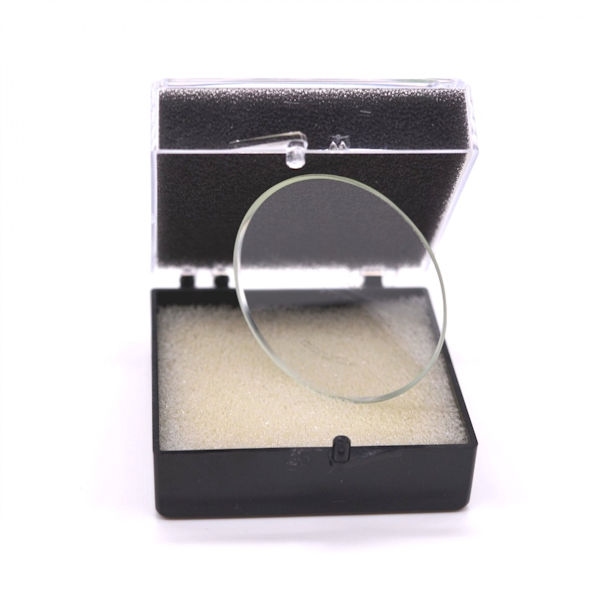

Reticule Ø 35 mm for magnifier, concentric circles Ø 2~24 mm

available in black, white or red with option UKAS certificate

Reticule Ø 35 mm for magnifier, concentric circles Ø 2~24 mm
Reticule Ø 35 mm for magnifier, concentric circles Ø 2~24 mm
Reticule Ø 35 mm for magnifier, concentric circles Ø 2~24 mm
Price on requet
Article code:  M6T50x
  • replacement scales for measuring loupes 1983, 2028, 2004, KIMAG-10, Mag6

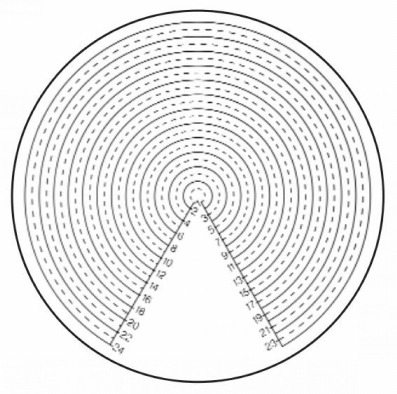

  • concentric circles ranging from 2 mm to 24 mm diameter
  • Ø 35 mm
  • glass type: green float / B270
  • thickness: 1.5mm
  • standard reticles are on glass discs with black metalised opaque lines best suited for light backgrounds.
  • for dark backgrounds red or white line reticles are also available
  • UKAS certificate in option
