content="14/09/2022″/> Kit measuring magnifier PEAK 1975, 7x, 20/0.1 mm

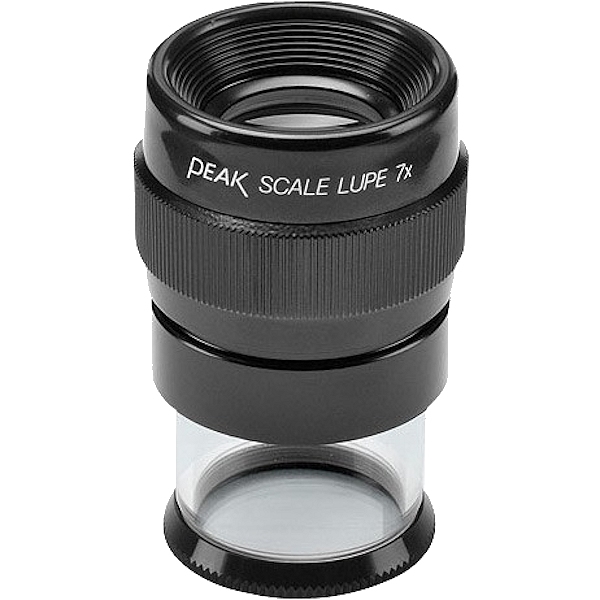

Kit measuring magnifier PEAK 1975, 7x, 20/0.1 mm

Kit measuring magnifier PEAK 1975, 7x, 20/0.1 mm

Kit measuring magnifier PEAK 1975, 7x, 20/0.1 mm

Kit measuring magnifier PEAK 1975, 7x, 20/0.1 mm

Kit measuring magnifier PEAK 1975, 7x, 20/0.1 mm

Kit measuring magnifier PEAK 1975, 7x, 20/0.1 mm

Kit measuring magnifier PEAK 1975, 7x, 20/0.1 mm

Kit measuring magnifier PEAK 1975, 7x, 20/0.1 mm

Kit measuring magnifier PEAK 1975, 7x, 20/0.1 mm

€ 85.00 *Prices are exclusive of VAT

Article code: 1976

The kit includes measuring magnifier 1975 & scales No. S-1975-2, S-1975-3, S-1975-7, S-1975-8 and S-1975-10
The scales can be completed as required
These lenses are coated to prevent reflection.

Technical specification

magnification factor: 7x
focusable: yes
field of view: Ø 24 mm

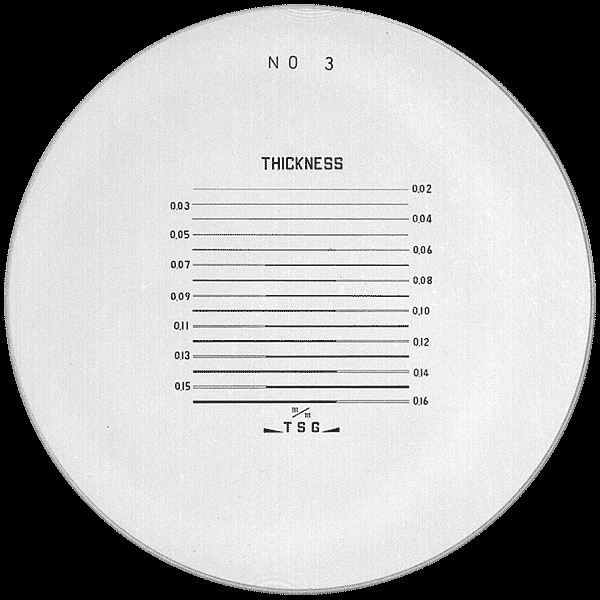

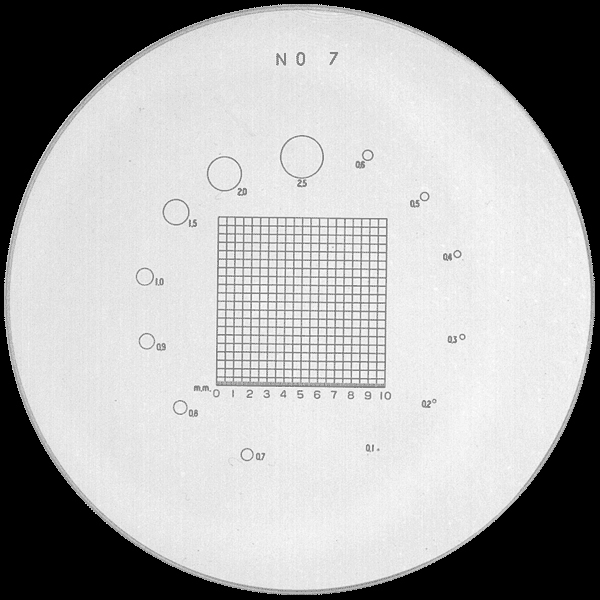

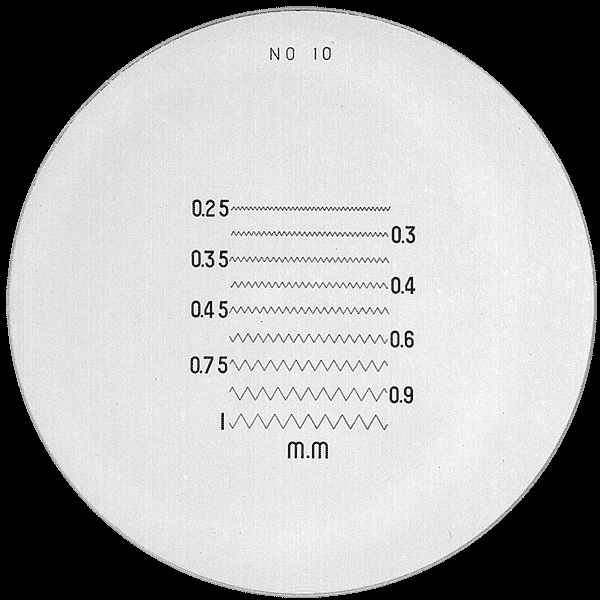

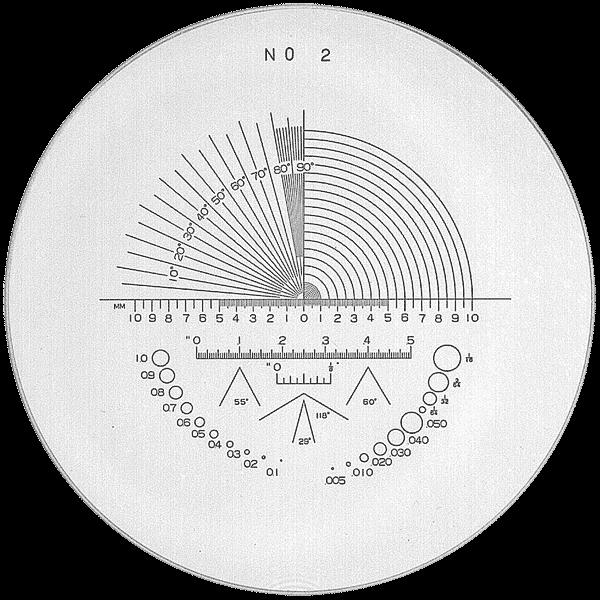

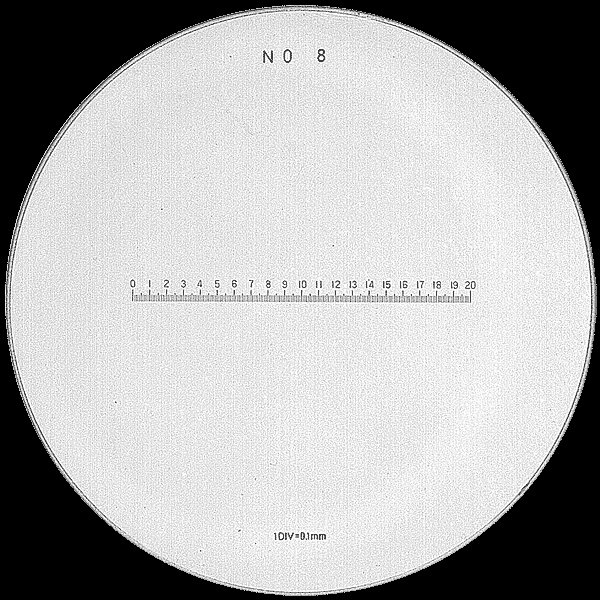

scale: interchangeable, delivered with black reticule S-1975-2, S-1975-3, S-1975-7, S-1975-8 and S-1975-10
measuring length: 20 mm
graduation: 0.1 mm
optical characteristics: achromatic, distortion-free
dimensions: Ø 36x62 mm
weight: 128 grammes
case: 125x60x60 mm

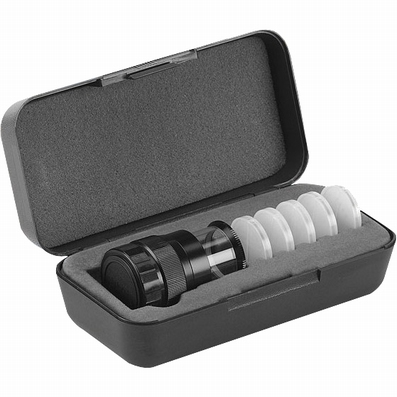

delivered in case

Accessories

reticule plate S-1975-xx
replacement transparent acrylic tubes KF-1975
threaded aluminium ring for scale Ø 26 mm GWR-1975
illumination for measuring magnifier 1998-L.H.

Quantity

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 1

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 1

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 10

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 10

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 11

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 11

RReticule plate Ø 26 mm, for magnifier 7x, black, n° 12

RReticule plate Ø 26 mm, for magnifier 7x, black, n° 12

Reticule plate Ø 26 mm, for magnifier 7x, white, n° 8

Reticule plate Ø 26 mm, for magnifier 7x, white, n° 8

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 2

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 2

Reticule plate Ø 26 mm, for magnifier 7x, white, n° 14

Reticule plate Ø 26 mm, for magnifier 7x, white, n° 14

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 3

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 3

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 4

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 4

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 5

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 5

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 6

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 6

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 7

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 7

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 8

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 8

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 9

Reticule plate Ø 26 mm, for magnifier 7x, black, n° 9

Reticule plate Ø 26 mm, for magnifier 7x, black, 20/0,01 mm

Reticule plate Ø 26 mm, for magnifier 7x, black, 20/0,01 mm

Reticule plate Ø 26 mm, for magnifier 7x, white, 20/0,01 mm

Reticule plate Ø 26 mm, for magnifier 7x, white, 20/0,01 mm

Threaded aluminium ring for scale Ø 26 mm

Threaded aluminium ring for scale Ø 26 mm

Acrylic tube for measuring magnifier Peak 1975, 1976, 1998

Acrylic tube for measuring magnifier Peak 1975, 1976, 1998

Illumination for measuring magnifier 1975, 1976, 1998

Illumination for measuring magnifier 1975, 1976, 1998
