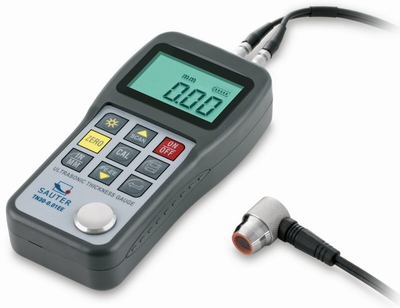

Ultrasonic thickness gauge TN 30-0.01EE, 5 MHz, 0.01 mm

Free Shipping B,L,F,NL,D

Ultrasonic thickness gauge TN 30-0.01EE, 5 MHz, 0.01 mm
Ultrasonic thickness gauge TN 30-0.01EE, 5 MHz, 0.01 mm
€ 890.00 629.00 *Prices are exclusive of VAT
Article codeTN 30-0.01EE
2 measuring modes pulse/echo and echo/echo for normal measurement or measurement through coating (without removing the coating)
  • possibility to connected various external sensors
  • delivered with probe 5 MHz, Ø 12 mm, exit 90 °
  • scan mode (16 measurements per sec.) or single point measuring mode possible
  • internal memory for up to 20 files (with up to 99 values per file)
  • RS-232 interface included for the transfer of measures
  • plate of calibration for the sensor integrated in housing

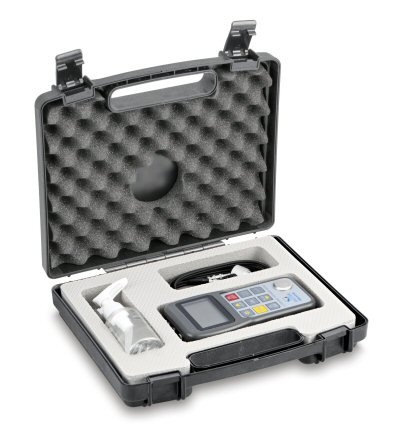

  • supplied with its carrying case
  • available units: mm, inch

Technical data
  • measurement with standard probe on steel, range:
    * echo-echo: 3~30 mm
    * puls-echo: 2~600 mm
  • resolution: 0,1/0.01 mm
  • accuracy: ± (0,5 % of the measured value + 0,01 mm)
  • sound velocity adjustable from 1000 to 9900 m/s
  • possibility of two-points calibration on material
  • single point mode, 7 mes/sec
  • scan mode with memorisation of the thinnest value, 16 mes/sec
  • battery operation, included in delivery (2 x 1.5 V AAA)
  • auto-off function to preserve the batteries
  • operating conditions: -20~60°C, < 90% Rh
  • dimensions WxDxH 150x74x32 mm
  • net weight approx. 0,245 kg (without battery), with carrying case 1,330 kg
  • warranty:  2 years

Standard delivery
  • unit TN-EE
  • probe 5 MHz, Ø 12 mm, exit 90°, with cable 0,9 m
  • ultrasound contact gel
  • carrying case
  • operating instructions
