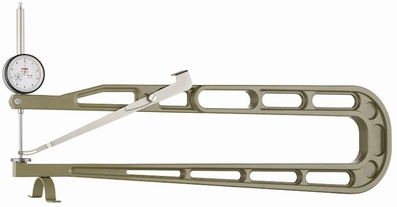

Analogue thickness gauge K600/50, 50/0.1/600 mm

Analogue thickness gauge K600/50, 50/0.1/600 mm
Analogue thickness gauge K600/50, 50/0.1/600 mm
Analogue thickness gauge K600/50, 50/0.1/600 mm
€ 443.30 398.00 *Prices are exclusive of VAT
Article code20332
  • range: 50 mm
  • range per revolution: 10 mm
  • reading: 0,1 mm
  • depth of the jaw: 400 mm
  • contact point: flat Ø10 mm
  • bezel: Ø58 mm
  • contact points normally closed by a spring, contact pressure 1.8 N (on request 0.9 N or 2.5 N)
  • measurement is done at constant pressure, suitable for soft material
  • rotating dial with ring black steel and unbreakable glass
  • accuracy: according to manufacturing standard, 80 µm
  • weight: 4.3 kg
  • retractable foot for use on table
  • delivered in cardboard box

Options & accessories

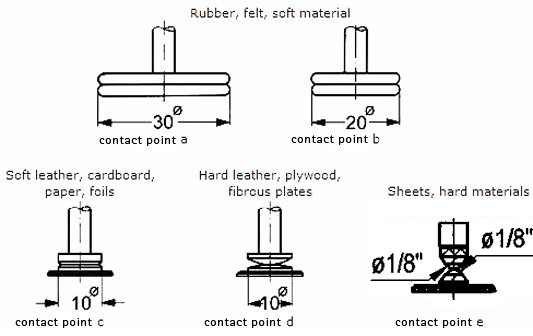

  • contact points: flat Ø30 mm (a) - free option, to be specified when ordering
  • contact points: flat Ø20 mm (b) - free option, to be specified when ordering
  • contact points: spherical Ø10 mm (d) - free option, to be specified when ordering
  • contact points: ball Ø10 mm (d) - free option, to be specified when ordering
On order
