499.00 *Prices are exclusive of VAT
Article codeDWL1900XY BT

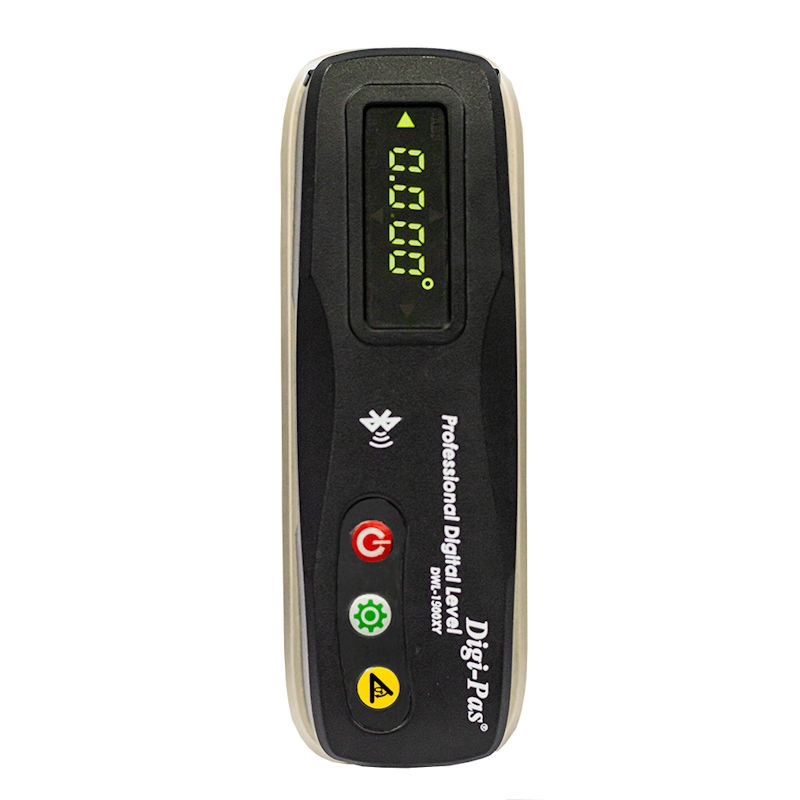

Digi-Pas DWL-1900XY is an affordable Wireless-Bluetooth, dual-axis precision digital Level of 0.001° resolution designed for industrial users & professionals.
This 2-axis SMART Digital Level replaces old-fashioned VIAL levels.
Users read both X & Y axis levelling measurements wirelessly in proximity via Bluetooth, which effectively cut down installation & setup time effortlessly (ONE-MAN operation) for precision machines & equipment, especially when used in conjunction with Digi-Pas Machinist Level Mobile App with user’s smartphone (optional purchase available for Apple & Android App Stores).

Digi-Pas Precision Digital Level is highly accurate, verified by 3rd parties accredited calibration labs & test bodies in US, Japan & Germany in accordance with ISO/IEC 17025:2005 and ANSI/NCSL Z540-1 standard, traceable to NIST, JIS & DIN.

Specification
  • measuring range from: 90° ~ ± 2,000° dual-axis
  • resolution of: 0.001° (≤18µm/m)
  • accuracy: ±0.002° at (90±0,5°), ±0.004° at other angles
  • repeatability: 0.001° (18µm/m)
  • measurement speed: ≤5 Sec.
  • user self calibration: yes
  • power supply: 2 X AA 1.5V batteries / micro USB
  • user may use device without or with Bluetooth® measurement when paired with smartphone & Digi-Pas Machinist level App (Optional)(Bluetooth range: approx. 15mtr.)
  • operating temperature at -10°C to +50°C
  • material: ABS / Aluminium

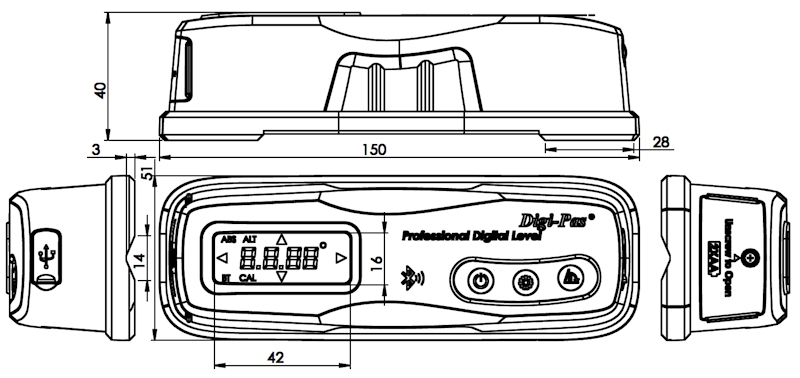

  • dimension: 149x51x40 mm
  • nett weight (approx.): 0,5 kg

Standard features
  • Mode: switch angle display between X & Y Axis
  • Alternate zero setting: enable user to measure relative angles at a common plane with respect to a reference angle. The reference angle can be set using alternate zero feature
  • Absolute level setting: enables user to perform absolute symmetry readings for both "front" & "reverse" (180 degrees) positions of any measurement angle.
  • User self calibration: easy self-calibration feature allows user to reset the digital level back to factory preset accuracy.

Digital Machinist App
  • program downloadable from Android App or Apple APP Store
  • code for 1 license / 1 download and installation (possibility to buy other licenses on the stores)
  • calibration
  • graphic and numerical representation on 1 or 2 axes (bull's eye)
  • alternative abs / zero functions, measurement units, full screen, hold
  • quick snap
  • multiple device

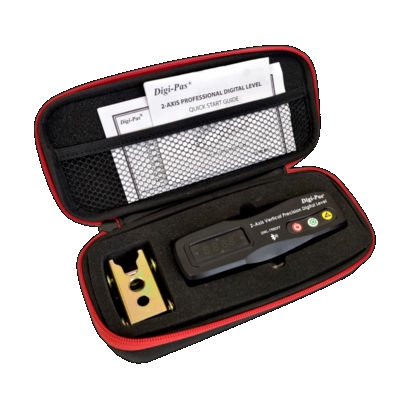

Scope of supply
  • electronic level DWL-1900XY
  • 1 code / license card to download and install the Digital Machinist App

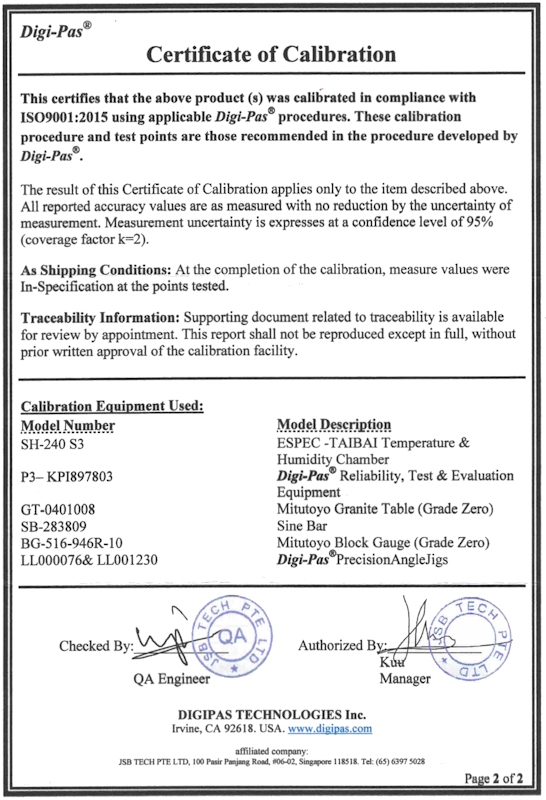

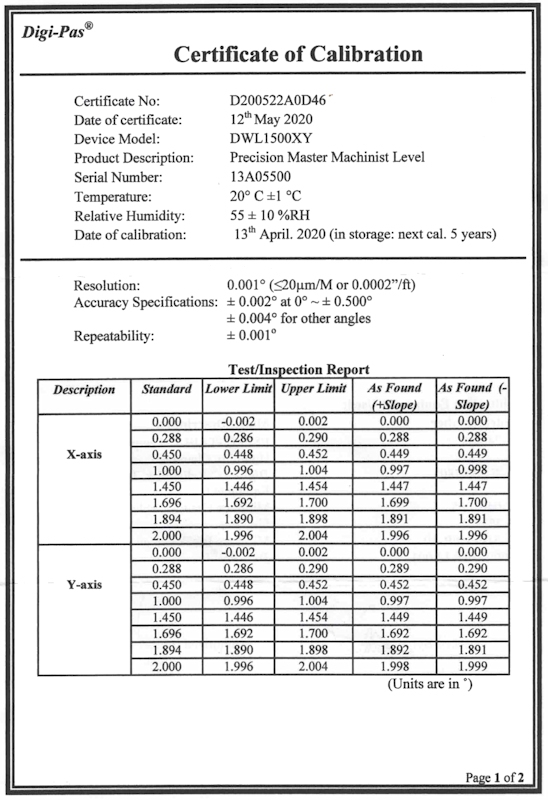

  • calibration certificate
  • carrying case
  • manual
In stock
Mobile App Features with Digital Machinist App
  • Smart 2D bubble: this feature allows user to vieuw 2-axis angle/levelling measurement simultaneously in garfical "Bull's eye" (with auto range feature) and numeric formats- °(degree), mm/m & in/ft units
  • Angle meter: this feature allows user to vieuw single-axis angle/levelling and can be toggle between X & Y angle
  • Multiple devices: link up two SMART MACHINIST LEVEL to perform surface comparison between 2 planes instantly
  • Quick snap: enable user to capture measurements values along with the product measurement photos using smartphone/tablet camera
  • Calibration: perform easy self-calibration, allows user to reset the digital level back to factory preset accuracy
  • Functions: absolute level, alternate zero, units measurement change, full screen, hold
