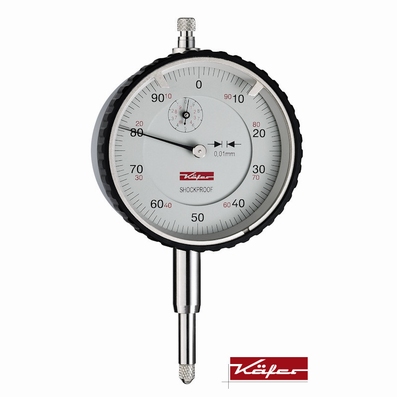

Mechanical dial gauge MU 52 T,10/1/0.01 mm, Ø58 mm

Mechanical dial gauge MU 52 T,10/1/0.01 mm, Ø58 mm
€ 34.00 € 25.90 *Prices are exclusive of VAT
Article code:  10253
MU 52 has been designed and manufactured by Käfer Dial Gauges Shanghai. The racks and pinions – the key parts for the accuracy of Dial Gauges – are however supplied by Käfer Germany. All Dial Gauges are checked for their accuracy on a Feinmess Suhl automatic Dial Gauge Measuring Machine.
  • reading: 0.01 mm
  • range: 10 mm
  • range per pointer resolution: 1 mm
  • initial measuring force: 0.7 N
  • Ø bezel: 58 mm
  • graduation:
    * main pointer: 0-100 (100-0) in steps of 1
    * small pointer: 0-10 (10-0) in steps of 1
  • adjustable tolerance indicators to set tolerance limit
  • Ø stem: 8h6
  • metal casing, bezel made of polyamide
  • rotating dial
  • tolerance indicators
  • flat back (removable)
  • stem and spindle made of resistant stainless steel
  • protection category: IP40
  • dimensions: according to DIN EN ISO 463
  • accuracy: in compliance with standards DIN EN ISO 463 / DIN 878 en NFE 11050
  • weight: 180 g
  • delivered in box with removable standard contact point, steel Ø 3 mm, M2,5

Options and special fittings
  • calibration certificate Kaefer in English
  • back: magnetic, lug or special
  • lifting device

In stock

Option

Factory certificate DIN 878 dial gauge, 0.01 mm, >5~10 mm

Factory certificate DIN 878 dial gauge, 0.01 mm, >5~10 mm
Option

€ 11.35
Glare free cover for dial gauges Ø 40 or 58 mm

Glare free cover for dial gauges Ø 40 or 58 mm
Option

€ 6.20
Fixing screw for the bezel for dial gauges Ø 40 or 58 mm

Fixing screw for the bezel for dial gauges Ø 40 or 58 mm
Option

€ 10.90
Lifting lever for dial gauge Ø58 mm, travel ≤ 15 mm

Lifting lever for dial gauge Ø58 mm, travel ≤ 15 mm
Accessorie

€ 6.60
Horizontal prism back for dial gauges Ø40 mm

Horizontal prism back for dial gauges Ø40 mm
Accessorie

€ 14.40
Vertical prism back for dial gauges Ø40 mm

Vertical prism back for dial gauges Ø40 mm
Accessorie

€ 14.40
Lug back horizontal for dial gauges ≥ Ø58 mm, bore Ø5 mm

Lug back horizontal for dial gauges ≥ Ø58 mm, bore Ø5 mm
Accessorie

€ 4.30
Lug back vertical for dial gauges ≥ Ø58 mm, bore Ø5 mm

Lug back vertical for dial gauges ≥ Ø58 mm, bore Ø5 mm
Accessorie

€ 4.80
Maximum slave pointer for dial gauges Ø 40 or 58 mm

Maximum slave pointer for dial gauges Ø 40 or 58 mm
Accessorie

€ 24.80
