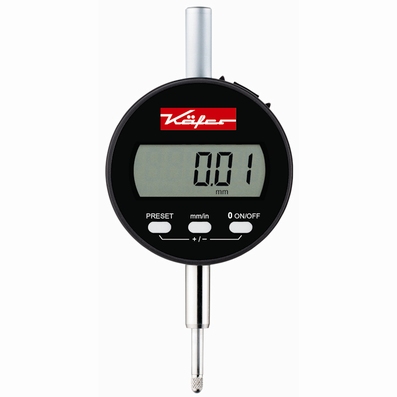

Digital dial indicator Kaefer MD12TOP, Ø60 mm, 12.5/0,01 mm

Made by Kaefer (D)

Digital dial indicator Kaefer MD12TOP, Ø60 mm, 12.5/0,01 mm
€ 140.00 75.00 *Prices are exclusive of VAT
Article codeMD12TOP
  • measuring range: 0~12.5 mm
  • resolution: 0.01 mm
  • accuracy: 20 µm + 1 digit
  • measuring force: 0.6~1.0 N ±10%
  • digital display LCD, height of digits 8.5 mm
  • mm/inch switchable
  • on/off switch
  • origin/reset
  • measuring direction reversible (+/-)
  • clamp shank: Ø 8mm h6 x l = 22mm
  • scale diameter: 60 mm
  • flat back wall
  • power supply: 1 battery 3 V CR 2032 (lifetime 3 years)
  • digital output: Opto RS232/Digimatic/USB
  • provided in box

Option and accessories
  • data connection cable 2m RS 232 (DCMV22)
  • data connection cable 2m DIGIMATIC (DCMVdigimatic)
  • data connection cable 2m USB (DCMVUSB)
  • calibration certificate according to VDI/VDE/DGQ 2618 establish by Kaefer
In stock
