Polarimeter OAB-N

Polarimeter OAB-N
Polarimeter OAB-N
Polarimeter OAB-N
Polarimeter OAB-N
€ 600.00 486.00 *Prices are exclusive of VAT
Article codeOAB 10LN

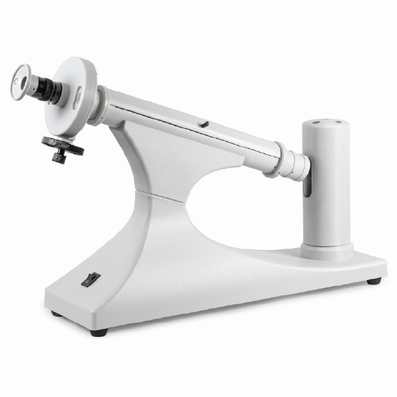

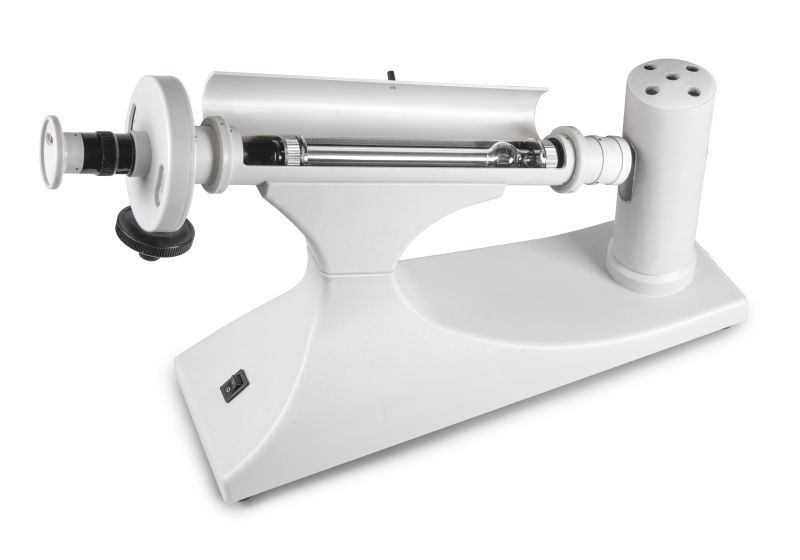

  • manual polarimeter distinguished by its ergonomic design and easy handling.
  • the powerful 589nm sodium vapor lamp is an optimal light source to create a linearly polarized light beam

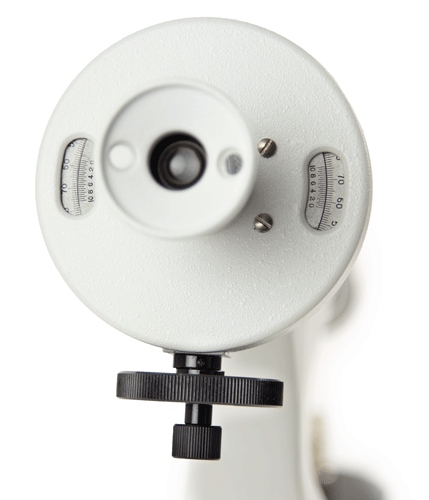

  • graduation in steps of 1 ° with vernier (0.05 °) makes it possible to precisely determine the angle of rotation of the substance to be examined

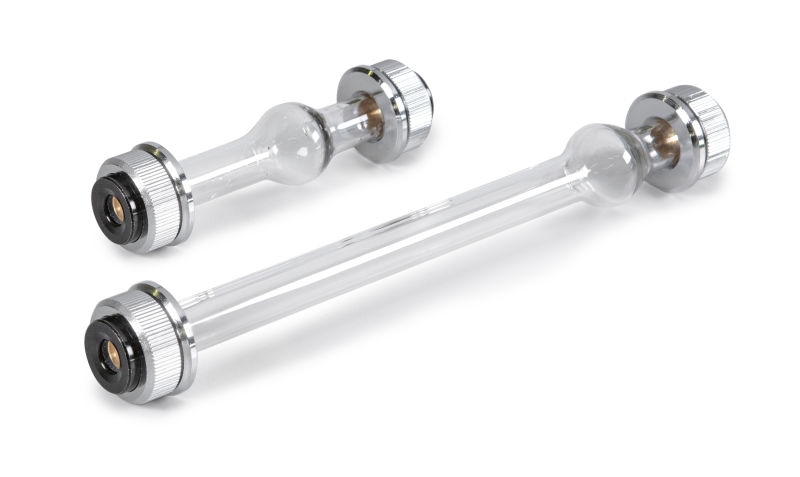

  • two glass cuvettes (100mm / 200mm) are also provided to easily collect liquid samples
Main fields of application
  • pharmacy
  • hospitals
  • beverage industry
  • food industry
  • chemical industry
  • laboratories
  • training

Technical characteristics
  • light source: sodium vapor lamp (589 nm)
  • graduation: step 1°, vernier 0.05°
  • polar scale, range ± 180° (to left and right)
  • 3x eyepiece with diopter adjustment ring
  • stabilization time: 10 min after activation
  • power supply: 100 ~ 240 Vac
  • total dimensions: W×D×H 500×130×330 mm
  • weight: 5 kg
  • supplied as standard: sodium vapor lamp, 100 mm glass cuvette, 200 mm glass cuvette, replacement lenses and sealing rings for cuvettes
Spare parts
  • sodium vapor lamp 589 nm, OAB-A2581
  • glass cuvette 100 mm, OAB-A2501
  • glass cuvette 200 mm, OAB-A258
