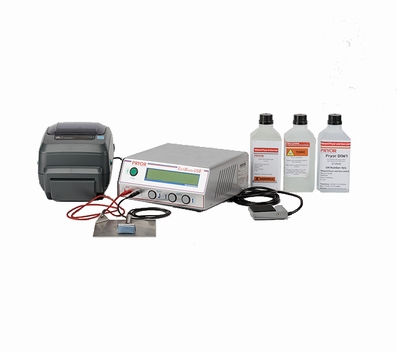

Etchmaster USB 10A etching unit

€ 2,093.00 *Prices are exclusive of VAT

Article code: EtchmasterUSB

Technical specification

powered using a single 110/220v supply.
USB Connectivity allowing download of settings from PC to unit
DC & AC in one operation
when using the AC cycle the anode and cathode are alternated around 50-60 cycles per second
the area to be marked must be free from insulating surface treatments e.g. paint, anodising, etc.
tension: 6 to 30 Volts
current: 0-10 Amps
time: 0-30 Seconds
auto actuation output
peristaltic pump output for auto fluid delivery
visible and audible cycle completion
spark Suppression
Windows based layout creation software
graphical and textual interfaces provide ease of use
support for all Windows based printers
support for Visual Basic scripting
graphical CAD file imports
flexible variable modes including serial numbering and time/date
all True Type fonts supported as well as several vector formats

Standard delivery

Quantity

Option and accessories

General consumable

PSC1 electrolyte (1 litre) chromium plate, inconel, stainless steel, tool steel, zinc/zinc alloys supplied in dry state for transportation, ref 10008780
PSC2 electrolyte (1 litre) carbides, nickel & alloys, non-ferrous metals, steel (low carbon/sand blasted), stainless steel, tin plate, tool steel, zinc (electroplated) supplied in dry state for transportation, ref 10008949
PSC4 electrolyte (1 litre) brass, carbides, chromium plate, inconel, nickel & alloys, non-ferrous metals, phosphor bronze, steel (low carbon/mild), stainless steel supplied in dry state for transportation, ref 10008782
PSC5 electrolyte (1 litre) steel (low carbon/mild), stainless steel supplied in dry state for transportation, ref 10008783
PSC6 electrolyte (1 litre) steel (black oxide coated) supplied in dry state for transportation, ref 10008787
Type C cleaner (1 litre), ref 10008779
Thermal stencil roll (100mm x 100m), ref 10007610

Aerospace approved consumable

PAE3 electrolyte (1 litre) for TCA Titanium, 17-7/ERY/EBM stainless steel, supplied in dry state for transportation, ref 10007685
PAE5 electrolyte (1 litre) for TAK Titanium supplied in dry state for transportation, ref 10007686
DIW1 neutraliser (1 litre), ref 10008775

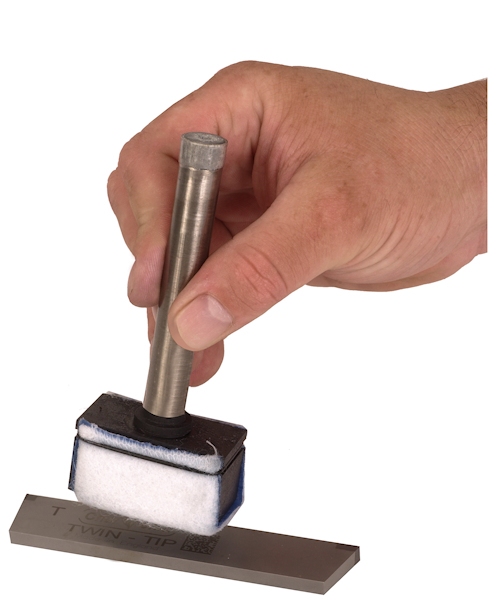

Electrodes

Felt pads

Bands
