Digital hardnesstester µVickers 300HVS-1000TA-IIIS, 10gf~1kg

motorized turret, digital, touch screen, 3 objectives

Digital hardnesstester µVickers 300HVS-1000TA-IIIS, 10gf~1kg
Digital hardnesstester µVickers 300HVS-1000TA-IIIS, 10gf~1kg
Digital hardnesstester µVickers 300HVS-1000TA-IIIS, 10gf~1kg
Digital hardnesstester µVickers 300HVS-1000TA-IIIS, 10gf~1kg
Digital hardnesstester µVickers 300HVS-1000TA-IIIS, 10gf~1kg
Price on request
Article codeHVSK-1000TZ-IIIS
It can be used to determine the Vickers (Knoop) hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

Feature & Use
  • equipped with 1 Vickers indenter and 3 objectives
  • motorized turret, during the test, the indenter and the objective lens automatically switch to each other, and the automatic positioning of the test point is accurate.
  • the lifting mechanism with optical cross guide rail is adopted to ensure the guiding accuracy. Rack and pinion two stage force transmission, can realize fast and stable force transmission

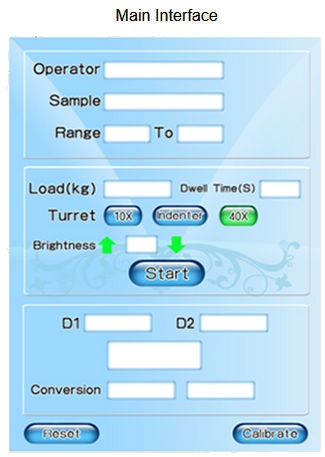

  • large 8 "touch screen, direct visual display and new interactive operating interface.
  • light source using LED lamp, long life, no need to replace the bulb.
  • built-in camera is optional, the image will be clearer

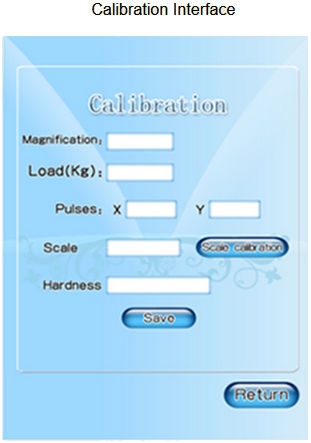

  • it can be calibrated according to the standard hardness block or length scale, and it can automatically correct the hardness according to the high, middle and low hardness values, and the hardness values are more accurate.
  • 8 inch touch screen interface, easy to operate.

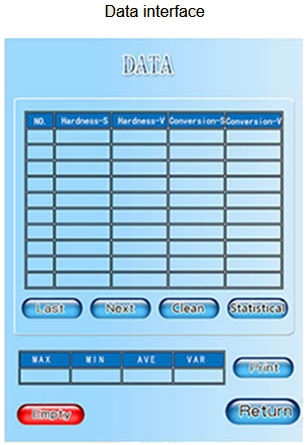

  • all test parameters and results are stored on USB flash disk in Excel format, which is convenient for data processing and test report output.
  • various hardness values are converted to each other.
  • test setting parameters are protected by password.
  • multi languages are available.
  • RS-232 interface (or built-in printer), can be connected with computer.
  • optional maximum test force 2kg
  • precision conforms to GB/T4340.2, ISO6507-2 and ASTM E384.

Technical Specifications
  • testing force:
    * gf: 10, 25, 50, 100, 200, 300, 500, 1000
    * N: 0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80
  • test mode: Vickers
  • motorized turret 4-position : 3 objectives, 1 Vickers indenter
  • according to standard: GB/T4340.2, EN-ISO6507, ASTME10-18, ASTME-384
  • indentation measurement: digital micrometric reticle
  • output data: touch-screen display, RS232 interface & Printer. USB disk interface is optional to replace printer
  • loading control: automatic (loading, dwell, unloading)
  • obective magnification: observation: 5x, 10x, 20x, 40x (option 50x, 60x)
  • magnification on of eyepiece: 10x eyepiece
  • total magnification: 50x, 100x, 200x, 400x
  • minimum resolution: 0.01 μm
  • dwell time: adjustable 1~99s
  • testing range: 1~2900 HV

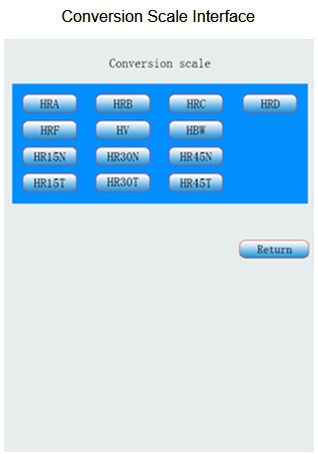

  • auto hardness conversion: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
  • X-Y anvil: size: 100x100mm; travel: 25x25mm; resolution: 0.01 mm
  • illumination: LED
  • max. height of specimen: 100 mm
  • instrument throat: 135 mm
  • power supply: AC220V/50Hz;110V/60Hz
  • dimension(LxWxH): 540x260x650 mm
  • gross/net weight: 50 Kg

Standard delivery
  • Vickers Indenter
  • objectives 5x, 10x, 20x, 40x
  • eyepiece10x
  • 2x hardness block HVx
  • accessories Box
  • X-Y coordinate tabel
  • fuse/power cable
  • anti-dust cover
  • manual
