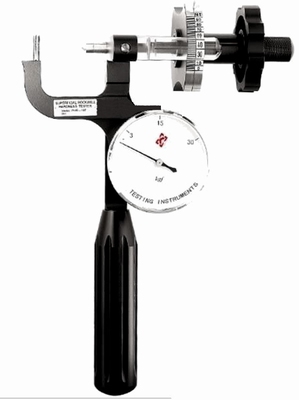

Portable Super Rockwell Hardness Tester for tubes

€ 1,371.00 *Prices are exclusive of VAT

Article code: PHR-1ST

portable hardness tester for the measurement of Super Rockwell hardness of thin-wall slim tubes according to standards EN ISO 6508 & ASTM E18
apply 15kg test force, small indentation, no effect to the application of most work pieces, used for finished work piece NDT test directly

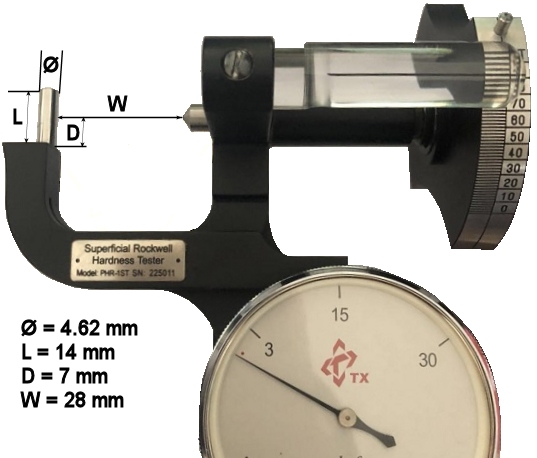

tests thin-wall slim pipes with an inner diameter > 4.8mm and a thickness > 0.15mm.
small and light, weight only 0.8 kg
as simple to use as a micrometer: the operator applies the preload using the crank, set the scale to zero, increases the load and returns to preload. He can read directly the hardness on the scale
capable of testing copper,brass, aluminum, aluminum alloys, stainless steel, silver pipe
possibility to test softer pipe with larger ball penetrator
test of standard block or plate with flat adaptor installed on the anvil

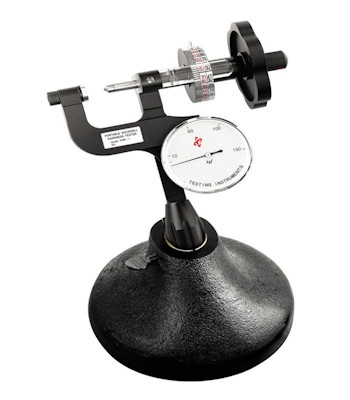

can be used on table by put into bench stand
precision meets the standards

Technical specifications

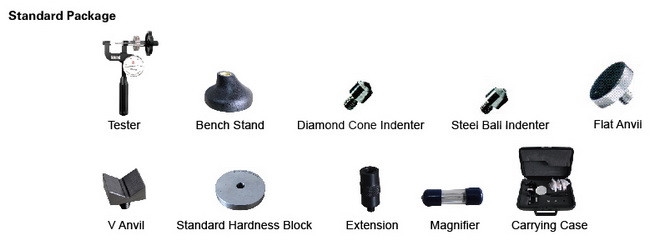

Scope of supply
