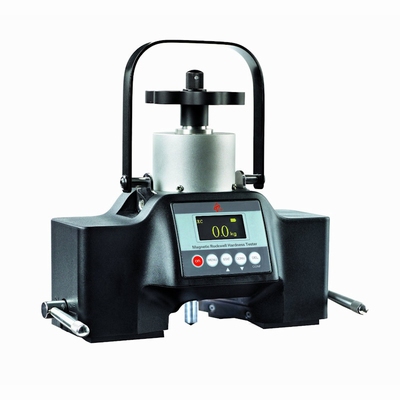

Portable digital magnetic Rockwell Hardness Tester

€ 3,993.00 *Prices are exclusive of VAT

Article code: PHR-200

portable digital hardness tester for the measurement of Rockwell hardness according to standards EN ISO 6508 & ASTM E18
fixation of the test head on the surface of iron and steel parts by applying a magnetic force
test of pieces of big sizes or when the clamping is not possible or too complicate
as simple to use as a micrometer: the operator applies the preload using the crank with help of the LCD display indicating the true load, increases the load and returns to preload. The LCD display directly the hardness
precision meets the standards

Technical specifications

preload: 10 kg
main charges: 60/100/150 kg
testing range:20~88HRA, 20~100HRB, and 20~70HRC
digital measurement of the force with a high precision / stability load cell, test force error: ≤±1%
digital measurement of the depth, resolution: 0.1 HR
surface of contact:
- flat, min: 60x195 mm, thickness ≥ 5 mm
- cylindrical, min. ØxL: 60x200 mm , thickness ≥ 8 mm
operating temperature: 0~50°C
weight
- hardness tester: 5.3 kg
- complete with carrying case: 10.0 kg
nominal dimension (LxDxH): 245×105×138mm
dimensions carrying case: 480x390x210 mm
accuracy & repeatability: EN ISO 6508 & ASTM E18 standards

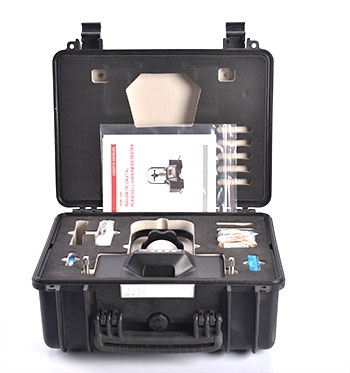

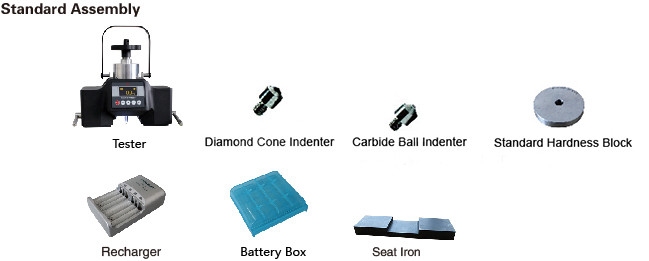

Scope of supply

Accessories

penetrator diamond and ball carbide 1/16 ", 1/8" or steel 1/4 '', 1/2 "
calibration block
customized adapters for cylindrical specimens with smaller diameters Ø 50~100 mm
