Manual/automatic Vickers/Knoop CCD image measuring system

€ 1,412.00 *Prices are exclusive of VAT

Article code: HDS-6020

0 star(s) in 0 review(s) Write a review

this system can be adapted to various Vickers/Knoop durometers to upgrade the hardness tester to a computerized measuring system.
depending on the type of durometer used, this measuring system can control various durometer functions such as automatic turret, brightness adjustment, load application time … (and load with durometers with closed-loop loading).
suitable for micro and Vickers durometers with various maximum test forces: 1, 5, 10, 30, 50 kg.
high resolution image

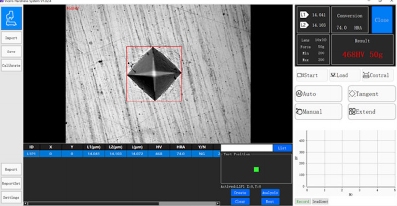

direct display of the imprint image and test data on the screen
manual measurement (points at the top, tangent line) or automatic (with the possibility of delimiting the measurement area in the image, manually correcting the measurement) of the imprint
possibility of measuring distances between 2 points or angles (respect of distances between imprints, conformity of the shape of the imprint, etc.)
display of the last measurement with display of the 2 diagonals, measurement objective, force, conversion, min max limits)
measurement display table with identifier, X/Y position of the table, 2 diagonals + average, HV or HK hardness, converted hardness (HRA, HRB, HRC, HRD, HR15N, HR30N, HR45N, HB, HS), good/out of tolerance, etc.
variation curve as a function of hardness

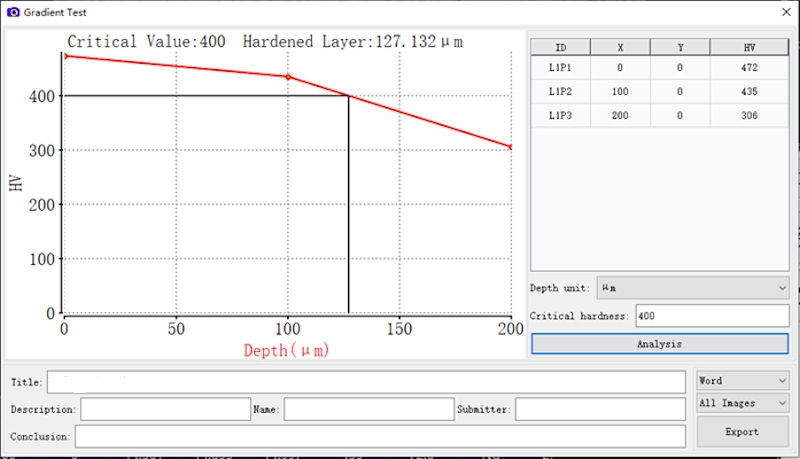

in the case where the X position of the sample is known (entered manually or automatically with a table Motorized X-Y), possibility to display the hardness distribution curve as a function of depth + determination of hardness depth as a function of hardness (CHD: Eht, Rht, Nht)
manual/automatic calibration possible using a micrometer or an imprint on a hardness block
hardness converted to other hardness scales according to ASTM standard.
statistics for hardness values and alarm for out-of-range hardness values;
easy to install, installs on a tablet or Windows PC
simple and easy-to-use interface, does not require training
test reports (doc format) can be customized; all test data can be saved for a long time and are easy to use for historical investigation.
½” CCD camera, 1280x1080 pixels, USB 2.0

Scope of delivery

1x CCD camera
1x C-mount adapter for mounting the camera on the durometer
1x 12 Vdc power supply
1x tablet/PC camera connection cable
1x software on CD-Rom
1x license key
