Hardnesstester LEEB2, pen type, 4100 D-DL

Double coil, increased precision

Hardnesstester LEEB2, pen type, 4100 D-DL
Hardnesstester LEEB2, pen type, 4100 D-DL
Hardnesstester LEEB2, pen type, 4100 D-DL
Hardnesstester LEEB2, pen type, 4100 D-DL
1,166.00 *Prices are exclusive of VAT
Article codeLEEB2-4100/D-DL

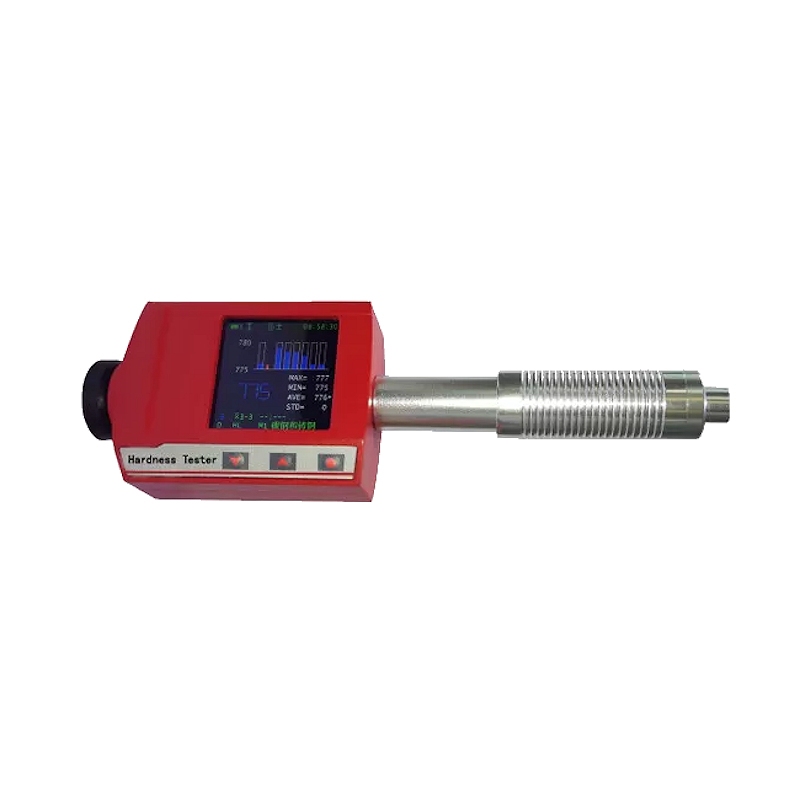

The LEEB2-4100 digital durometer is a new generation LEEB hardness tester the size of a palm with many new features. It uses patented dual-coil technology, which gives it extraordinary precision: + / 2 HL (or 0.3% @ HL800) with high-contrast color TFT screen and durable metal housing. It has a movable bar display that can assess the workpiece according to the value of the deviation by different colors for easy visual distinction. LEEB2-4100 can download measurement data to PC and print to micro-printer via USB and wireless port with internal wireless module. The battery can be charged simply from the USB port, it also has a recalibration function and customer statistics.

Benefits
  • integrated design, easy operation
  • durable metal housing
  • TFT320X320 color screen
  • extended environmental conditions: -20 ° C ~ + 70 ° C
  • high precision: + / 2 HL (or 0.3% @ HL800)
  • automatic compensation error for different impact directions
  • mobile bar graph display
  • two modes of evaluation: limit or deviation
  • two calibration modes: coincide / independent
  • multi-print mode
  • four display styles
  • audible reminder
  • up to 10 types of menu languages
  • two in one D & DL probe
  • date and time function
  • it can connect to computer by USB or Bluetooth
  • USB and Bluetooth interface, it can connect to a wireless micro-printer
  • 3.7V rechargeable Li-ion battery, it can be charged by USB or by power source
  • the value of statistics can be calculated automatically
  • with resistance conversion value
  • turn on / off automatically or manually

Characteristics
  • principle: Leeb2 hardness measurement
  • accuracy / repeatability: ± 0.3% @ HL = 800 / ± 2HL
  • screen: TFT color 320 x 320 with high contrast
  • hardness scale: HL / HRC / HRB / HB / HV / HS / HRA / sb
  • measuring range: HL100-960 / HRC0.9-79.2 / HRB1.2-140 / HB1-1878 / HV1-1698 / HS0.5-128 / HRA7-88.5 / sb (rm) 24-6599N / mm2
  • probe: internal D / D-DL 2 in 1
  • materials and conversion curves: 11 common metallic materials, 75 curves
  • memory: 30/60 files on request, 100 data for each file, can be saved and readable
  • statistical function: average / max. / min. / standard deviation
  • recalibration: possible by the user, coincide / independent
  • indicator: low battery
  • Language: English, Simplified Chinese, Traditional Chinese, Russian, Korean, French, Italian, German, Turkish, Spanish
  • interface: USB / Bluetooth to PC for data transfer, wireless printing, USB for charging
  • on / off: automatic / manual
  • power supply: 3.7 V rechargeable Li-ion battery
  • working environment: -20ºC ~ + 70ºC
  • dimension: 148x44x22 mm
  • net weight: 115g
  • standards: conforms to ASTM A956, DIN 50156, GB / T 17394-1998, EN ISO 16859
Standard delivery
  • 1x main unit
  • 1x internal D + DL probe 2 in 1
  • 1x D test block
  • 1x small support ring
  • 1x cleaning brush
  • 1x 3.7 V rechargeable Li-ion battery (internal)
  • 1x Bluetooth module (internal)
  • 1x charger
  • 1x USB cable
  • 1x data management software
  • 1x user manual
  • 1x factory test certificate
  • 1x carrying case

Optional accessories
  • Bluetooth micro printer (powered by a rechargeable battery)
  • special support rings
  • standard support ring for probe D
  • small support ring
  • impact body D
  • D test block with or without certificate
