Hardnesstester LEEB2-2500+ with 2 probe D cable/wireless

Double coil, increased precision

Hardnesstester LEEB2-2500+ with 2 probe D cable/wireless
Hardnesstester LEEB2-2500+ with 2 probe D cable/wireless
Hardnesstester LEEB2-2500+ with 2 probe D cable/wireless
Hardnesstester LEEB2-2500+ with 2 probe D cable/wireless
1,150.00 *Prices are exclusive of VAT
Article codeLEEB2-2500+/CW
The Leeb2-2500 digital durometer uses probes that are based on new dual coil sensor technology inside the probe. All Leeb2-2500 probes are modular digital probes, which gives a more precise hardness measurement.

Benefits
  • patent dual- coil technology
  • all probe are digital type
  • high repeatability accuracy: ± 2 HL (or 0.3% @HL800)
  • TFT color display
  • auto compensate error for different impact direction

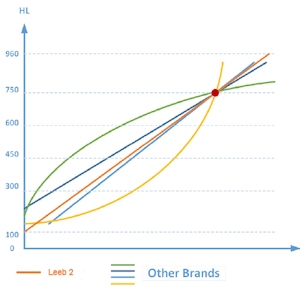

  • high linear accuracy for any angles
  • powered by AA battery or USB power supply

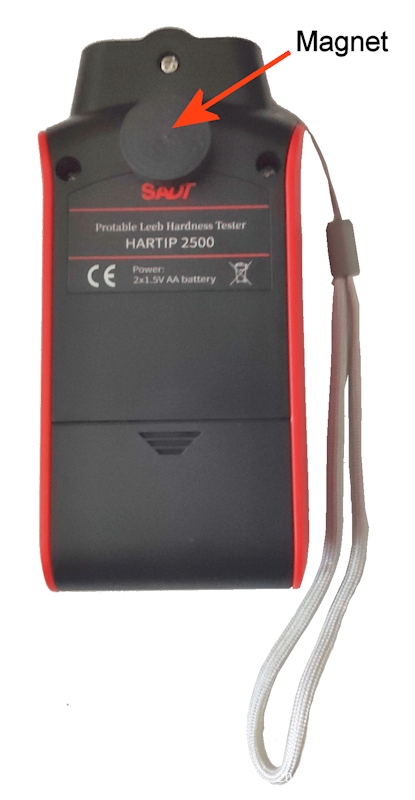

  • the tester can be attracted to the work piece with magnetic base (optional)
  • statistics value can be calculated automatically
  • up to 10 kinds of menu language

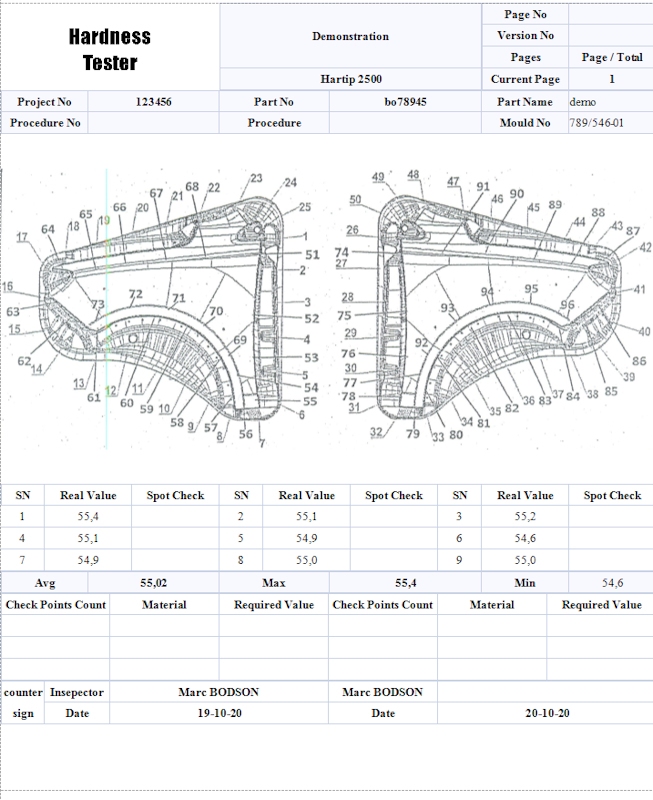

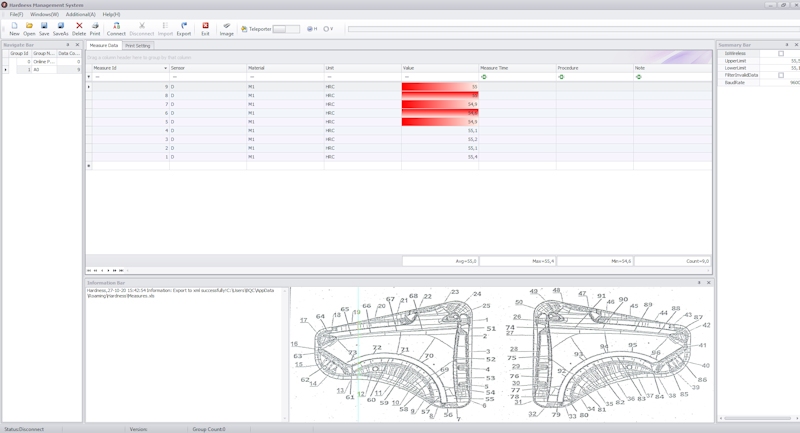

  • data managing software on PC
  • power on/off automatically or manually

Characteristics
  • principle: Leeb2 hardness measurement
  • accuracy / repeatability: ± 0.3% @ HL = 800 / ± 2HL

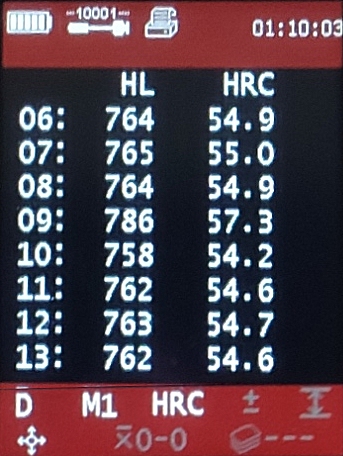

  • screen: high contrast color TFT 240 x 320
  • hardness scale: HL / HRC / HRB / HB / HV / HS / HRA / sb
  • measuring range: HL170-960/ HRC1.3-74.7/ HRB1.2-139.7/ HB28-1027/ HV45-1221 HS4.0-112.1/ HRA1.3-88.5/ MPa118-3315N/mm²

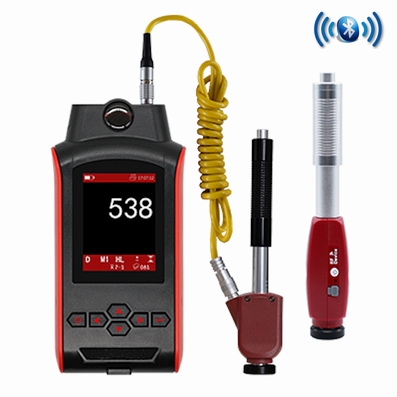

  • probe: 1x cable digital probe D + 1x digital wireless D with 3.7 V power supply via integrated rechargeable Li-ion battery + USB charger
  • materials and conversion curves: 11 common metallic materials, 75 curves

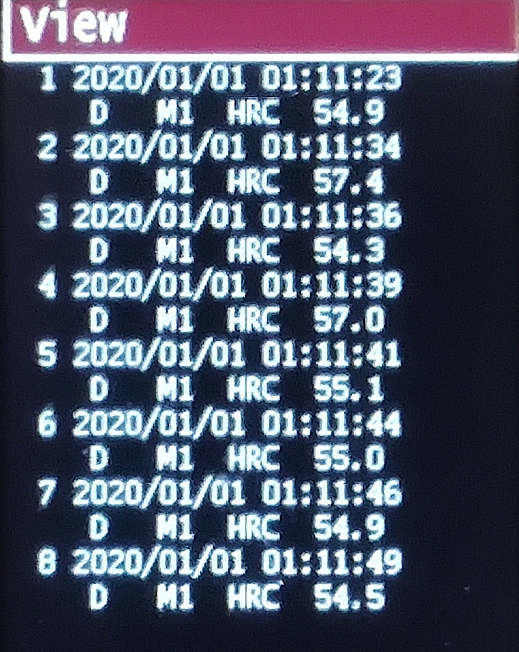

  • memory: 999 data
  • interface: USB / Bluetooth

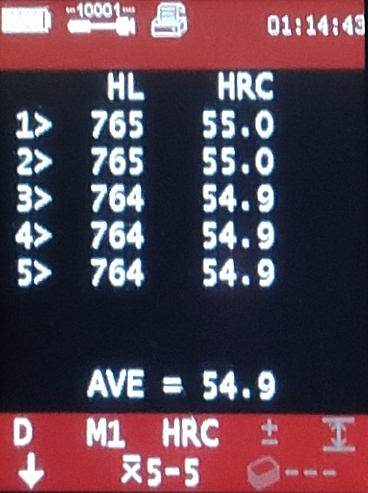

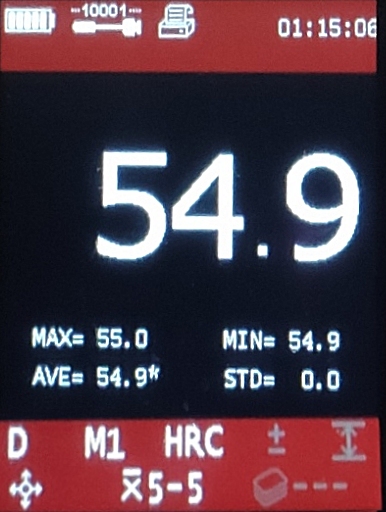

  • statistics function: average / max. / min. / standard deviation
  • re-calibration: allowed by user
  • indicator: low battery
  • language: English, Chinese, Russian, Korean, French, Italian, German, Turkish, Spanish
  • power on/off: auto/manual
  • power supply: AA alkaline battery / USB power supply
  • working environment: -20°C~+70°C
  • dimension: 145x70x30 mm
  • net weight: 145g
  • standards: conforming to ASTM A956, DIN 50156, GB/T 17394-1998, EN ISO 16859

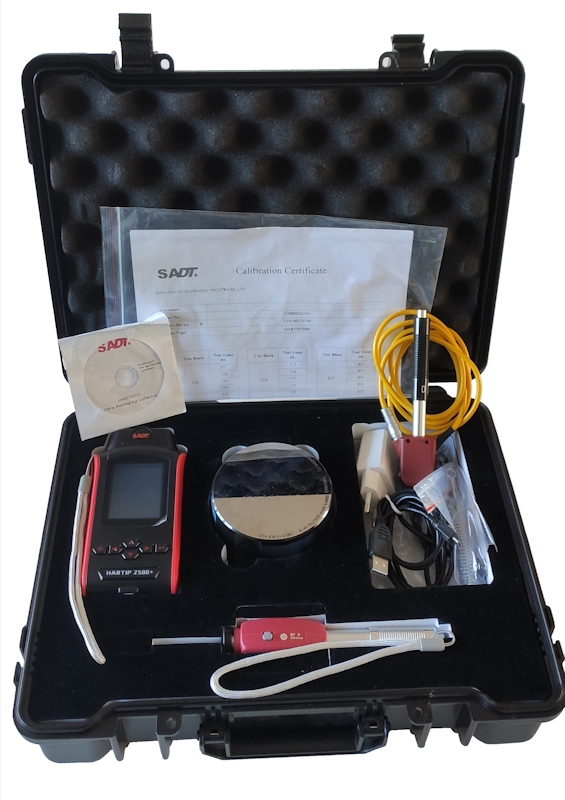

Standard delivery
  • 1x main unit
  • 1x digital cable probe D with cable
  • 1x wireless rf digital probe
  • 1x D test block
  • 1x small support ring
  • 1x cleaning brush
  • 1x USB cable
  • 1x user manual
  • 1x factory test certificate
  • 1x carrying case

Optional accessories

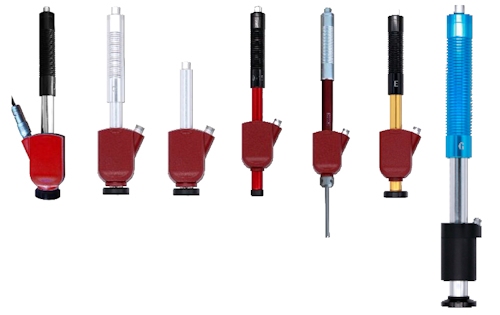

  • digital cable probe C/DC/D+15/DL/E
  • wireless rf digital probe D/C/DC/D+15/DL/E

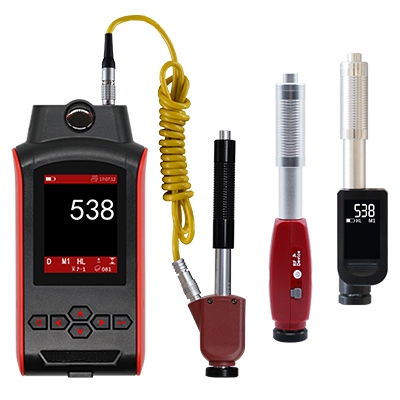

  • wireless rf digital probe D (with integrated display)
  • special support rings
  • standard support ring for probe D
  • small support ring
  • impact body D
  • D test block with or without certificate
