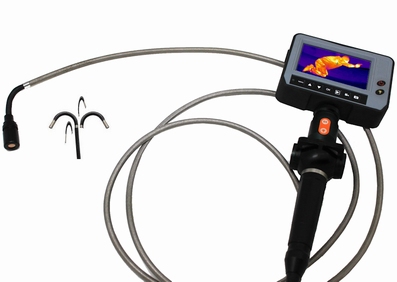

Flexible photo-video-endoscope IR 4 axis, Ø18.5 mm, 1.5 m

Thermal imaging

Flexible photo-video-endoscope IR 4 axis,  Ø18.5 mm, 1.5 m
Flexible photo-video-endoscope IR 4 axis,  Ø18.5 mm, 1.5 m
Flexible photo-video-endoscope IR 4 axis,  Ø18.5 mm, 1.5 m
Flexible photo-video-endoscope IR 4 axis,  Ø18.5 mm, 1.5 m
Flexible photo-video-endoscope IR 4 axis,  Ø18.5 mm, 1.5 m
Price on request
Article codeDR4518FR
Technical specification
  • camera: IR, uncooled focal plane sensor
  • size of the camera (ØxL): 18.5x45 mm
  • direction of view: straight ahead
  • viewing angle: 50°
  • camera's orientation: mechanical, 4 axis north/south - east/west, angle of rotation max ± 120°, friction adjustment
  • number of pixels: 60x80
  • FPS: 9/sec
  • temperature range: -20~+150°C
  • temperature measurement: center point 2x2 pixel
  • accuracy of temperature measurement:
    * -20~0°C: ± 7°C
    * 0~35°C: ± 5°C
    * +35~+150°C: ± 3°C
  • camera shell/housing: steel alloy
  • objective and probe: IP67
  • probe length: 1.5 m
  • insertion guide: woven sheath coved with woven wires of stainless steel, Ø 8 mm
  • detachable probe with handle from display
  • 1x 0.5 m electrical cable handle/display standard delivered
  • LCD screen: 4.3" 16:9 matrix color active LCD
  • data interfaces: mini USB 2.0 for transfers of images and video
  • video output: NTSC or PAL
  • memory: SD 8 GB card high speed (max 32G)
  • function keys: menu, video recording, photos
  • video format: AVI
  • image format: JPEG
  • image functions: overview, freeze
  • management of the date and time with the possibility to integrate or not in the image
  • language support: 7 languages (GB, DE, FR, PT, RU, JP, CN)
  • power supply: replaceable lithium battery, 3000 mAh
  • operating time: => 8 h for a charging time of 7 h
  • auto off: (off, 3/5/10 min)
  • charger 100~240 Vac / 5 Vdc
  • working temperature:
    * display: 0~+40° C
    * video probe: 0~+ 80° C
  • relative humidity: 15~90%, non-condensing
  • weight: endoscope < 1 kg, display 0.4 kg,suitcase full 3.4 kg
  • size:
    * display: 145x105x40 mm
    * suitcase: 140x340x440 mm

Standard delivery
  • 1x display
  • 1x probe 1.5 m with handle
  • 1x battery
  • 1x 8 GB SD card
  • 1x USB cable
  • 1x cable handle/display 0.5 m

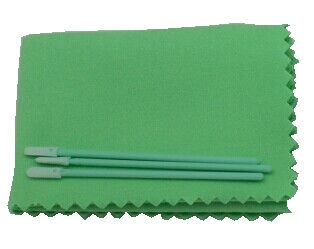

  • 1x cleaning kit
  • 1x charger
  • 1x manual

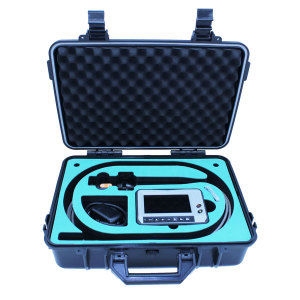

  • 1x waterproof suitcase with water

Options & accessories
  • probes with other lengths and/or depths of fields
  • spare probes
