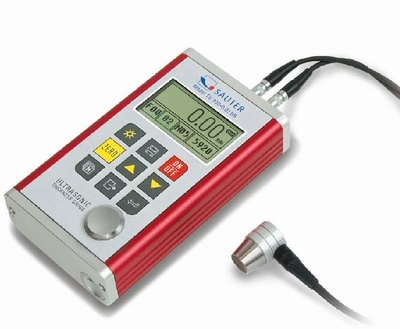

Ultrasonic thickness gauge TU300-0.01US, 2.5 MHz,0.01mm

Free Shipping B,L,F,NL,D

€ 1,410.00 € 1,197.00 *Prices are exclusive of VAT

Manufacturer: SAUTER GmbH
Article code: TU 300-0.01US

extruded aluminium body suitable for use under poor working conditions

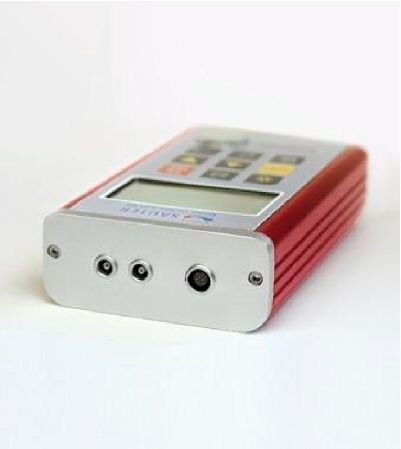

possibility to connected various external sensors
delivered with standard probe 2,5 MHz, Ø 14 mm, for thick samples, in particular cast iron with rough upper surfaces
scan mode (10 measurements per sec.) or single point measuring mode possible
internal memory for up to 20 files (with up to 99 values per file)
function to set limits: Programmable high / low setpoints for go/no-go testing. Light and sound signal output

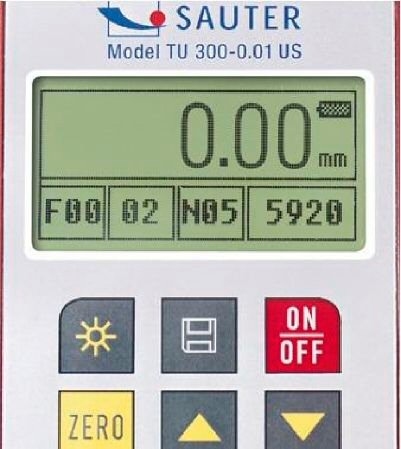

permanent display of various information: status of coupling, speed of sound, sensor type, measure no., file No., mode
RS-232 interface included for the transfer of measures
plate of calibration for the sensor integrated in housing

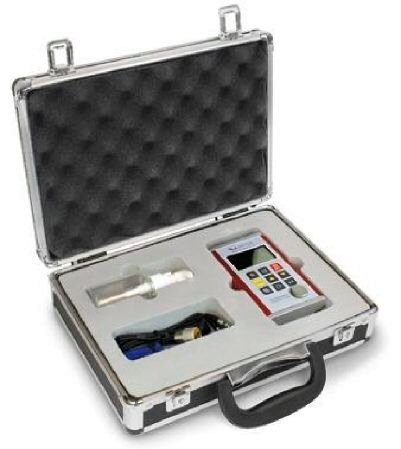

supplied with its carrying case
available units: mm, inch

Technical data

Standard delivery

Quantity

Options & accessories

ISO certificate of calibration, 961-113
software with transfer cable, ATU-04
external probe, 6 MHz, Ø 6 mm, for thin materials, range 1~50 mm (steel), ATB-US01
external probe, 5 MHz, Ø 12 mm, for hot materials, range (steel)
* 1~225 mm for normal temperatures
* 4~100 mm with temperatures up to 300° C, ATB-US02
external probe, 2,5 MHz, Ø 14 mm, for thick samples, in particular cast iron with rough upper surfaces: measuring range 3~300 mm (steel), ATU-US01
external probe, 7 MHz, Ø 6 mm, range 0,75~80 mm (steel) ATU-US02
external probe, 5 MHz, Ø 10 mm, range 1,2~230 mm (steel), ATU-US09
external probe, 5 MHz, 10 mm Ø, range 1,2~230 mm (steel), 90 °, ATU-US10
thermal printer, ATU-05
5 blocks to calibration, steel, 20, 50, 100, 200, 300 mm, ATU-09
bottle of coupling gel, 60 ml, ATB-US03
