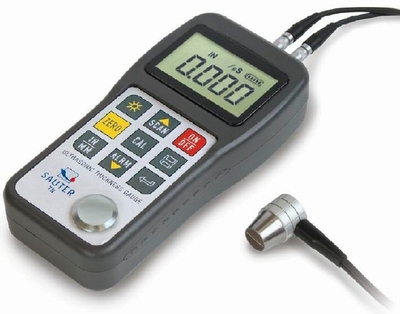

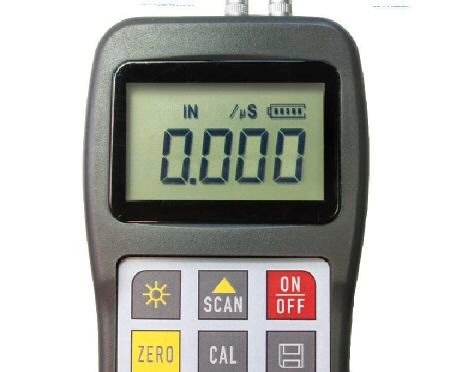

Ultrasonic thickness gauge TN 230-0.1US, 5 MHz, 0.1 mm

Free Shipping B,L,F,NL,D

Ultrasonic thickness gauge TN 230-0.1US, 5 MHz, 0.1 mm
Ultrasonic thickness gauge TN 230-0.1US, 5 MHz, 0.1 mm
Ultrasonic thickness gauge TN 230-0.1US, 5 MHz, 0.1 mm
Ultrasonic thickness gauge TN 230-0.1US, 5 MHz, 0.1 mm
€ 630.00 € 535.00 *Prices are exclusive of VAT
Manufacturer:  SAUTER GmbH
Article code:  TN 230-0.1US
  • possibility to connected various external sensors
  • delivered with standard probe 5 MHz, Ø 10 mm, exit 90 °
  • scan mode (10 measurements per sec.) or single point measuring mode possible
  • internal memory for up to 20 files (with up to 99 values per file)
  • plate of calibration for the sensor integrated in housing

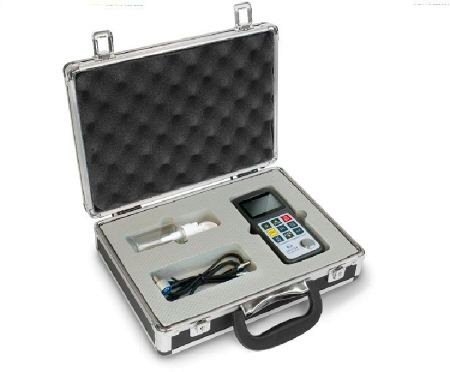

  • supplied with its carrying case
  • available units: mm, inch

Technical data
  • measurement with standard probe on steel, range: 0,75~80 mm
  • resolution: 0.1 mm
  • accuracy: 0.5% of the measured value + 0.04 mm
  • sound velocity adjustable from 1000 to 9000 m/s
  • possibility of two-points calibration on material
  • scan mode with memorisation of the thinnest value
  • battery operation, included in delivery (2 x 1.5 V AAA)
  • auto-off function to preserve the batteries
  • operating conditions: -20~60°C, < 90% Rh
  • dimensions WxDxH 150x74x32 mm
  • net weight approx. 0,245 kg (without battery), with carrying case 1,330 kg
  • warranty:  2 years

Standard delivery
  • unit TN-US
  • probe 5 MHz, Ø 10 mm, exit 90°, with cable 0,9 m
  • ultrasound contact gel
  • carrying case
  • operating instructions
Options & accessories
  • ISO certificate of calibration, 961-113
  • external probe, 6 MHz, Ø 6 mm, for thin materials, range 1~50 mm (steel), ATB-US01
  • external probe, 5 MHz, Ø 12 mm, for hot materials, range (steel)
    * 1~225 mm for normal temperatures
    * 4~100 mm with temperatures up to 300° C, ATB-US02
  • external probe, 2,5 MHz, Ø 14 mm, for thick samples, in particular cast iron with rough upper surfaces: measuring range 3~300 mm (steel), ATU-US01
  • external probe, 7 MHz, Ø 6 mm, range 0,75~80 mm (steel) ATU-US02
  • external probe, 5 MHz, Ø 10 mm, range 1,2~230 mm (steel), ATU-US09
  • external probe, 5 MHz, 10 mm Ø, range 1,2~230 mm (steel), 90 °, ATU-US10
  • 5 blocks to calibration, steel, 20, 50, 100, 200, 300 mm, ATU-09
  • bottle of coupling gel, 60 ml, ATB-US03

Option & accessories

External sensor, 5 MHz, 1~50 mm, Ø 6 mm

External sensor, 5 MHz, 1~50 mm, Ø 6 mm

€ 215.00 € 183.00
External sensor, 5 MHz, Ø 12 mm, HT

External sensor, 5 MHz, Ø 12 mm, HT

€ 270.00 € 230.00
External sensor, 2,5 MHz, 3~300 mm, Ø 14 mm

External sensor, 2,5 MHz, 3~300 mm, Ø 14 mm

€ 230.00 € 196.00
External sensor, 5 MHz, 2~230 mm, Ø 10 mm

External sensor, 5 MHz, 2~230 mm, Ø 10 mm

€ 150.00 € 128.00
External sensor, 5 MHz, 2~230 mm, Ø 10 mm, 90°

External sensor, 5 MHz, 2~230 mm, Ø 10 mm, 90°

€ 150.00 € 128.00
Data transfer software AFI-2.0

Data transfer software AFI-2.0

€ 95.00 € 81.00
Data transfer software with interface cable, TN/TU-US

Data transfer software with interface cable, TN/TU-US

€ 120.00 € 102.00
Ultrasound contact gel, water base, yellow, bottle, 125 ml

Ultrasound contact gel, water base, yellow, bottle, 125 ml

€ 12.00
Factory calibration certificate for instrument US ≤ 300 mm

Factory calibration certificate for instrument US ≤ 300 mm

€ 159.00 € 152.00
