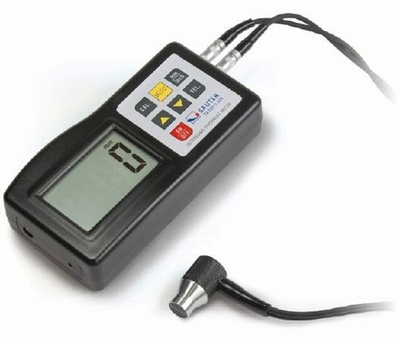

Ultrasonic thickness gauge TD 225-0.1US, 5 MHz, 0.1 mm

Free Shipping B,L,F,NL,D

Ultrasonic thickness gauge TD 225-0.1US, 5 MHz, 0.1 mm
Ultrasonic thickness gauge TD 225-0.1US, 5 MHz, 0.1 mm
Ultrasonic thickness gauge TD 225-0.1US, 5 MHz, 0.1 mm
€ 485.00 € 412.00 *Prices are exclusive of VAT
Manufacturer:  SAUTER GmbH
Article code:  TD 225-0.1US
  • possibility to connected various external sensors
  • delivered with standard probe 5 MHz, Ø 8 mm, exit 90 °
  • RS-232 interface included for the transfer of measures
  • plate of calibration for the sensor integrated in housing
  • supplied with its carrying case
  • available units: mm, inch
Technical data
  • measurement with standard probe on steel, range: 1, 0 ~ 200 mm
  • resolution: 0.1 mm
  • accuracy: 0.5% of the [Max] + 0.1
  • sound velocity adjustable from 500 to 9000 m/s
  • 12 pre-programmed speeds for standard materials
  • dimensions WxDxH 120 x 65 x 30 mm
  • battery operation, included in delivery (4 x 1.5 V AAA)
  • auto-off function to preserve the batteries
  • operating conditions: 0~50° C, <80% HR
  • net weight approx. 0.164 kg (without battery), carrying case 0.75 kg
  • warranty:  2 years

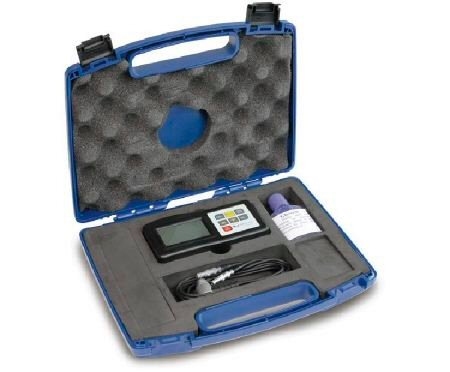

Standard delivery
  • unit TD-US
  • probe 5 MHz, Ø 8 mm, exit 90°, with cable 0,9 m
  • carrying case
  • operating instructions
Options & accessories
  • ISO certificate of calibration, 961-113
  • software with transfer cable, ATD-01
  • external probe, 6 MHz, Ø 6 mm, for thin materials, range 1~50 mm (steel), ATB-US01
  • external probe, 5 MHz, Ø 12 mm, for hot materials, range (steel)
    * 1~225 mm for normal temperatures
    * 4~100 mm with temperatures up to 300° C, ATB-US02
  • external probe, 7 MHz, Ø 6 mm, range 0,75~80 mm (steel) ATU-US02
  • external probe, 5 MHz, Ø 10 mm, range 1,2~230 mm (steel), ATU-US09
  • external probe, 5 MHz, 10 mm Ø, range 1,2~230 mm (steel), 90°, ATU-US10
  • 5 blocks to calibration, steel, 20, 50, 100, 200, 300 mm, ATU-09
  • bottle of coupling gel, 60 ml, ATB-US03

Option & accessories

External sensor, 5 MHz, 1~50 mm, Ø 6 mm

External sensor, 5 MHz, 1~50 mm, Ø 6 mm

€ 215.00 € 183.00
External sensor, 5 MHz, Ø 12 mm, HT

External sensor, 5 MHz, Ø 12 mm, HT

€ 270.00 € 230.00
External sensor, 5 MHz, 2~230 mm, Ø 10 mm

External sensor, 5 MHz, 2~230 mm, Ø 10 mm

€ 150.00 € 128.00
External sensor, 5 MHz, 2~230 mm, Ø 10 mm, 90°

External sensor, 5 MHz, 2~230 mm, Ø 10 mm, 90°

€ 150.00 € 128.00
External sensor, 7 MHz, 0.75~80 mm, Ø 6 mm

External sensor, 7 MHz, 0.75~80 mm, Ø 6 mm

€ 150.00 € 128.00
Data transfer software with interface cable, TD-US

Data transfer software with interface cable, TD-US

€ 90.00 € 77.00
Ultrasound contact gel, water base, yellow, bottle, 125 ml

Ultrasound contact gel, water base, yellow, bottle, 125 ml

€ 12.00
Factory calibration certificate for instrument US ≤ 300 mm

Factory calibration certificate for instrument US ≤ 300 mm

€ 159.00 € 152.00
