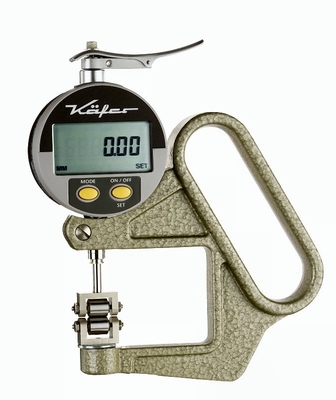

content="14/09/2022″/> Digital thickness gauge JD50R, 10/0.01/50 mm

Digital thickness gauge JD50R, 10/0.01/50 mm

Digital thickness gauge JD50R, 10/0.01/50 mm
651.00 *Prices are exclusive of VAT
Article code20086
  • range: 10 mm
  • reading: 0,01 mm
  • depth of the jaw: 50 mm
  • contact point: rollers Ø 8.4 x L 8.7 mm
  • rollers with side disc guides for measuring the thickness of wires
  • bezel: Ø58 mm
  • measuring system: inductive
  • digital display LCD, height of the digit 8.5 mm
  • contact points normally closed by a spring, measurement is done at constant pressure
  • maximum error: 10 µm ± 1 digit
  • power supply: battery Li 3V, life time 3000 h
  • output: RS232, optoelectronic / USB
  • working temperature: +5~+40°C
  • weight: 594 g
  • delivered in cardboard box

Options & accessories
  • factory calibration certificate
  • stand to convert the thickness gauge in a table model
  • data cabel RS232
  • data cabel USB
