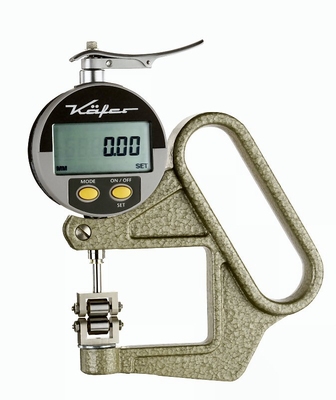

Digital thickness gauge JD50/25R, 25/0.01/50 mm

Digital thickness gauge JD50/25R, 25/0.01/50 mm

€ 767.00 *Prices are exclusive of VAT

Article code: 20317

range: 25 mm
reading: 0,01 mm
depth of the jaw: 50 mm
contact point: rollers Ø 8.4 x L 8.7 mm
rollers without side disc guides for measuring the thickness of foiles
bezel: Ø58 mm
measuring system: inductive
digital display LCD, height of the digit 8.5 mm
contact points normally closed by a spring, measurement is done at constant pressure
maximum error: 10 µm ± 1 digit
power supply: battery Li 3V, life time 3000 h
output: RS232, optoelectronic / USB
working temperature: +5~+40°C
weight: 574 g
delivered in cardboard box

Options & accessories

factory calibration certificate
stand to convert the thickness gauge in a table model
data cabel RS232
data cabel USB

On order

Contact points

Quantity

Option & accessories

Stand 2.1670, sizes 100x30x19 mm

Stand 2.1670, sizes 100x30x19 mm
For thickness gauge

Details

KAEFER calibration certificate 0.1/0.01, 30 mm

KAEFER calibration certificate 0.1/0.01, 30 mm

DAkkS calibration certificate 0.1/0.01, 30 mm

DAkkS calibration certificate 0.1/0.01, 30 mm
