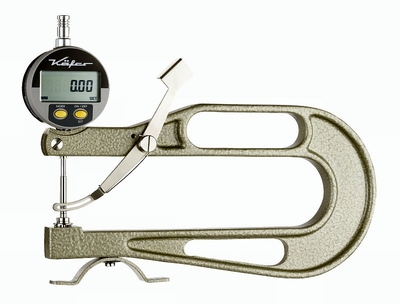

Digital thickness gauge JD100/25, 25/0.01/100 mm

Digital thickness gauge JD100/25, 25/0.01/100 mm
Digital thickness gauge JD100/25, 25/0.01/100 mm
693.00 *Prices are exclusive of VAT
Article code20046
  • range: 25 mm
  • reading: 0,01 mm
  • depth of the jaw: 200 mm
  • contact point: flat Ø10 mm
  • bezel: Ø58 mm
  • measuring system: inductive
  • digital display LCD, height of the digit 8.5 mm
  • contact points normally closed by a spring, measurement is done at constant pressure
  • maximum error: 10 µm ± 1 digit
  • power supply: battery Li 3V, life time 3000 h
  • output: RS232, optoelectronic / USB
  • retractable foot for use on table
  • working temperature: +5~+40°C
  • weight: 850 g
  • delivered in cardboard box

Options & accessories
  • factory calibration certificate

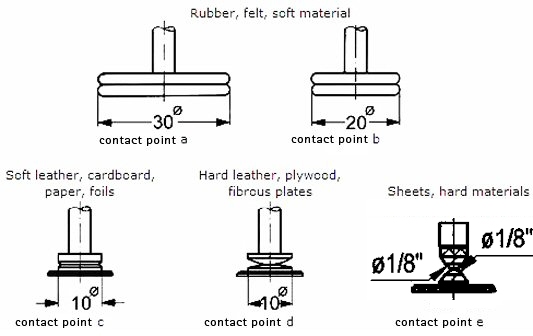

  • contact points: flat Ø30 mm (a) - free option, to be specified when ordering
  • contact points: flat Ø20 mm (b) - free option, to be specified when ordering
  • contact points: spherical Ø10 mm (d) - free option, to be specified when ordering
  • contact points: ball Ø1/8" mm (e) - free option, to be specified when ordering
  • data cabel RS232
  • data cabel USB
