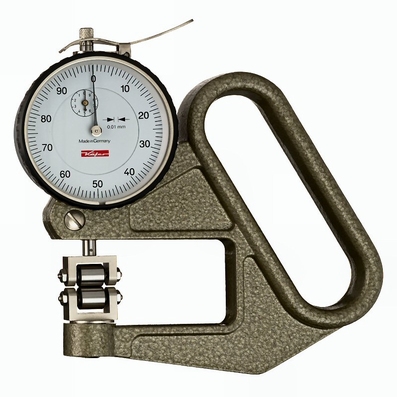

Analogue thickness gauge J50/WD, 5/0.01/50 mm

= J50R without side discs

Analogue thickness gauge J50/WD, 5/0.01/50 mm
242.00 *Prices are exclusive of VAT
Article code20038
  • range: 5 mm
  • range per revolution: 1 mm
  • reading: 0,01 mm
  • depth of the jaw: 50 mm
  • contact point: rollers Ø 8.4 x L 8.7 mm
  • rollers without side disc guides for measuring the thickness of foils
  • bezel: Ø58 mm
  • contact points normally closed by a spring
  • measurement is done at constant pressure, suitable for soft material
  • rotating dial with ring black steel and unbreakable glass
  • weight: 411 g
  • delivered in cardboard box

Options & accessories
  • factory calibration certificate
  • stand to convert the thickness gauge in a table model
  • also available in version K50, K100, K200, J50/20, J200
