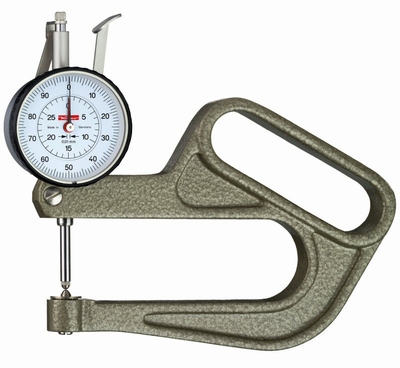

Analogue thickness gauge J100/30, 30/0.01/100 mm

Analogue thickness gauge J100/30, 30/0.01/100 mm

Analogue thickness gauge J100/30, 30/0.01/100 mm

Analogue thickness gauge J100/30, 30/0.01/100 mm

€ 232.00 *Prices are exclusive of VAT

Article code: 20079

range: 30 mm
range per revolution: 1 mm
reading: 0,01 mm
depth of the jaw: 100 mm
contact point: flat Ø10 mm
bezel: Ø58 mm
contact points normally closed by a spring, contact pressure 1.5 N
measurement is done at constant pressure, suitable for soft material
rotating dial with ring black steel and unbreakable glass
accuracy: according to DIN 878
weight: 600 g
delivered in cardboard box

Options & accessories

factory calibration certificate

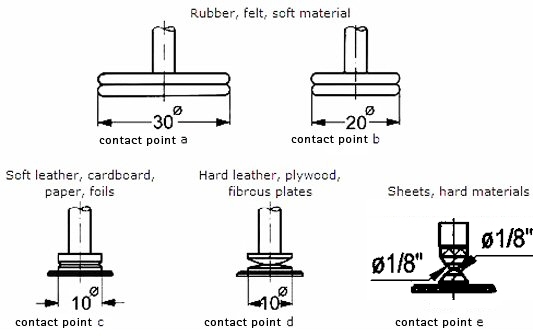

contact points: flat Ø30 mm (a) - free option, to be specified when ordering
contact points: flat Ø20 mm (b) - free option, to be specified when ordering
contact points: spherical Ø10 mm (d) - free option, to be specified when ordering
contact points: ball Ø1/8" mm (e) - free option, to be specified when ordering
contact pressure: 1.2 N of 3.0 N - option
stand to convert the thickness gauge in a table model

On order

Contact points

Quantity

Option & accessories

Stand 2.1670, sizes 100x30x19 mm

Stand 2.1670, sizes 100x30x19 mm
For thickness gauge

Details

KAEFER calibration certificate 0.1/0.01, 30 mm

KAEFER calibration certificate 0.1/0.01, 30 mm

DAkkS calibration certificate 0.1/0.01, 30 mm

DAkkS calibration certificate 0.1/0.01, 30 mm
