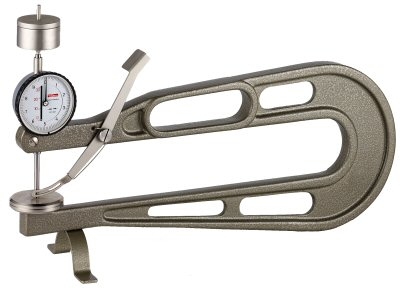

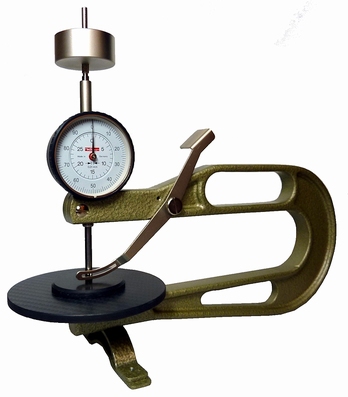

Analogue thickness gauge 5084, 28/0.01/200 mm

€ 1,195.00 *Prices are exclusive of VAT

Article code: 20305

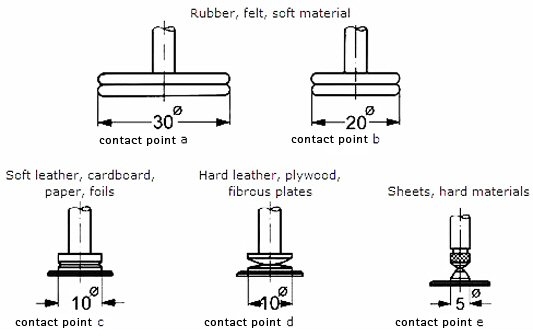

This dial thickness gauge is used exclusively to measure the thickness of fleece according to the standard DIN EN ISO 5084 (edition 1996). It is equipped with special contact points and has a special contact force.
The concentric millimeter pointer allows easy and safe reading of the dial thickness gauge.

Basic technical specification

range: 28.5 mm
range per revolution: 1 mm
reading: 0,01 mm
depth of the jaw: 200 mm
upper feeler Ø 50,5 mm (carbon)
lower feeler Ø 108 mm (carbon)
bezel: Ø58 mm
contact points normally closed by earth gravitational field, no spring for lifting lever. Measurement is done at ± constant pressure
rotating dial with ring black steel and unbreakable glass
accuracy: according to manufacturing standard
weight: 875 g
retractable foot for use on table
delivered in cardboard box
