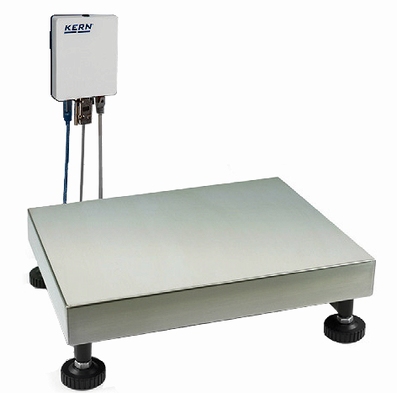

Platform scale KGP, 30 kg / 1 g, 300x240 mm

Free Shipping B, L, F, NL, D

Platform scale KGP, 30 kg / 1 g, 300x240 mm
Platform scale KGP, 30 kg / 1 g, 300x240 mm
€ 460.00 419.00 *Prices are exclusive of VAT
Manufacturer KERN
Article codeKGP 30K-3
With this combination of 1 platform (KFP V20 IP65) and A/D converter box (YKV-01) your weighing processes are ready for the requirements of Industry 4.0. Simply install the platform, connect the A/D converter box to the network and start weighing.
  • weighing range: 30 kg
  • readout: 1 g
  • linearity: ± 3 g
  • reproducibility: 1 g
  • dimensions of stainless weighing plate (lxwxh): 300×240×120 mm
  • stainless steel-weighing plate, painted steel base
  • 1 load cell, aluminium, silicone-coated, IP65, OIML-approved, class III, 3000 e
  • level indicator and foot screws to level the balance precisely, fitted as standard, to give the most accurate weighing results
  • no display
  • A/D converter box for rapid transfer of weighing data to connected networks, computers, etc.
  • data interface: standard USB & RS232, transfer formats are freely configurable
  • many interface variants available
  • internal resolution 16 million divisions
  • measurement frequency 10 Mhz
  • functions: weighing, taring
  • included with delivery: configuration software for adjusting and managing the KDP, for large-format display of the values collected on the PC as well as transfer of this data to other Apps and programs. The displayed result can therefore be converted to any format for communication with the different user programs, such as, for example, e.g. SAP
  • uses the KCP communication protocol
  • A/D converter box: robust plastic die-cast housing suitable for wall mounting and DIN track mount
  • main adapter external 100~240 Vac
  • cable length ca 3 m
  • dimension of A/D converter box (WxDxH): 100×127×28 mm
  • net weight approx. 6 kg
  • permissible ambient temperature -10°C / 40°C
  • warranty 3 years

Standard delivery
  • industrial platform
  • A/D converter box KERN YKV-01
  • configuration software
  • user’s manual
Options & accessories
  • DAkkS certificate (option)

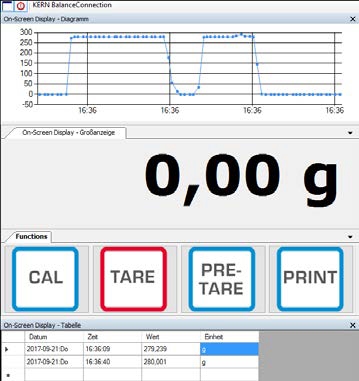

  • software BalanceConnection for adjusting and managing the KERN KDP, for large-format display of the values collected on the PC as well as transfer of this data to other apps and programs
  • WiFi data interface, YKV-01
  • A/D converter box with standard Ethernet data interface
  • Bluetooth data interface, YKV-02
