GalvanoTest 2000

€ 6,401.00 *Prices are exclusive of VAT

Article code: 80-302-0001

Quantity

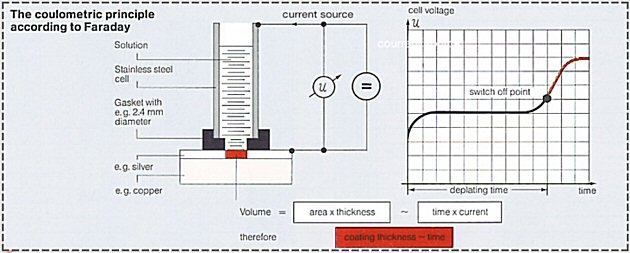

Destructive measurement of electroplated coatings like chromium, nickel, cadmium, copper, brass, silver, tin, zinc on metallic or non-metallic substrates

Technical specification

deplating speeds: 8 in the range of 0,3 à 40 µm/min

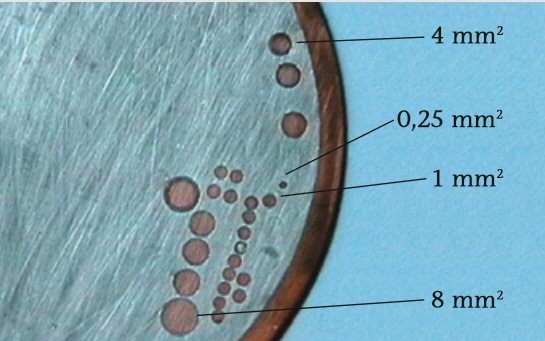

measuring surface: gasket A-8 mm² (Ø 3.2 mm) & B-4 mm² (Ø 2.3 mm)
measuring range: 0,05 à 75 µm
accuracy : ± (5 % of reading) on a measuring area of 8 mm² after calibration
variable shut-down speed to suppress interference or for measuring alloy zones between coating and subs
directly adjustable calibration factors, individual setting according to metal type and measuring surface
calibration setting with the aid of thickness standards
electrolyte alarm/saturation indicator
more than 70 coating/substrate combinations (standard version, see table)
measurement of coatings on flat and curved surfaces, small components and wiresnumber of memories for various metals: 18
* 9 preset types of metal: Cr, Ni, Cu, brass, Zn, Ag, Sn, Pb, Cd
* further metal coatings for special applications
number of readings which can be stored and evaluated: 2000
non-volatile memory retains all calibration settings, readings and statistical valuesafter the gauge has been switched off
statistical evaluation: immediate or delayed display of 6 statistical values – mean value, standard deviation, coefficient of variation, number of readings, highest and lowest single reading
immediate or delayed print-out of readings and statistics
display and print-out of date and time – year, month, day, hour and minute
when switched on, the gauge displays details of the last readings
illuminated voltmeter for monitoring the deplating process
print-out diagram with MiniPrint showing measuring cell voltage levels over the coating, especially useful for detecting alloy zones between coating and substrate
operator guide to the alphanumeric displays with language option:German, French or English
interface for MiniPrint data printer
interface for an RS 232 C for connection to a PC
analog output for connection to an x-t recorder to chart voltage curve
power supply: 110/220 V 50…60 Hz/10 Watt
dimensions (lxpxh) : 260x250x100 mm
weight : Galvanotest 2.5 kg, stand with measuring cell ± 3,0 kg

Standard delivery

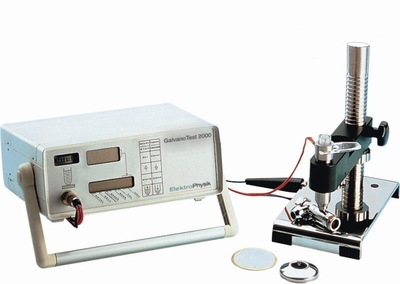

GalvanoTest device
standard stand with measuring cell and pulsator nozzle
connecting cable gauge / stand
ring gaskets 1xA & 1xB
3 bottles electrolyte, 100 ml each, according to client selection, except E12
pipettes
1 bottle for electrolyte waste
1 spray bottle
1 rubber pencil
absorbent paper
operating manual

Accessories

mask A 8 mm² (Ø 3.2 mm)
mask B 4 mm² (Ø 2.3 mm)
mask C 1 mm² (Ø 1.1 mm)
cathode cup
clamp to measure wires using the electrolyte cup
fixture for small pieces
calibration standards
electrolyte solution (see table)
pipettes
precision support with centering tool Z1 and wire holder
MiniPrint data printer including charger, battery operated
connecting cable for MiniPrint data printer
replacement pump tube
replacement rubber pencil
connecting cable RS 232 C for connection to a PC or compatible printer
connecting cable for Y-T recorder to produce diagram of measuring cell voltage curve
MSoft 7000 Basic Edition for visualising voltage curve, incl. multimeter and connecting cable

Coating

Base

Lead

Lead/

tin

Chrome

Nickel

electroless

Cadnium

Copper

Brass

Nickel

Siler

Zinc

Tin

Tin/zinc

78/22

Non metallic

E15

E11

E17

E14

Steel

E15

E11

E17

E14

E20

Copper

E15

E14

Brass

E15

E12

E14

Aluminium

E15

E11

E17

E14

E11

Bronze

Nickel

E15

E11

Nickel-silver

Zinc diecast

E12

Zinc

E12

Kovar

E15

Silicon

E14

Siver

E15

Cadnium
